All data is our best estimate based on the information provided online

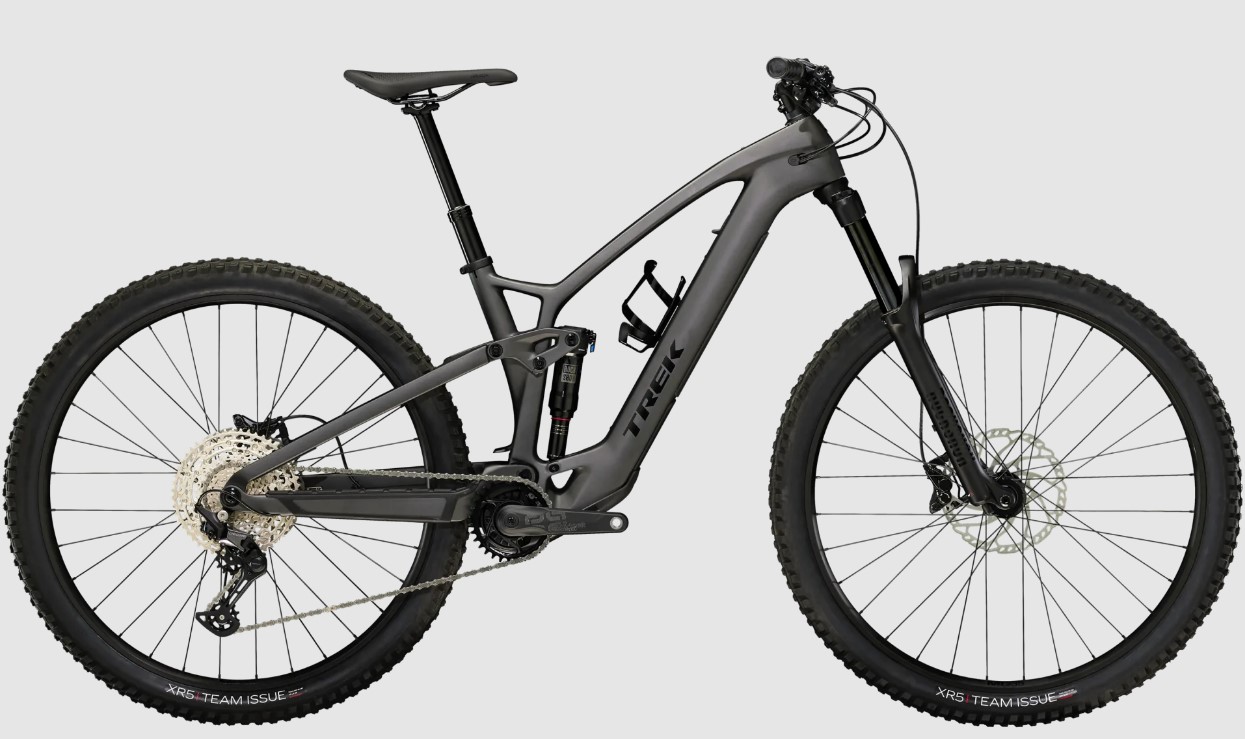

2023 TREK Fuel EXE
| MODEL VERSION YEARS | |
|---|---|
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 44 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 140 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.33 |
| STARTING LEVERAGE | 2.6 |
| SAG POINT LEVERAGE | 2.42 |
| ENDING LEVERAGE | 2.17 |
| PROGRESSION % | 16.5 |

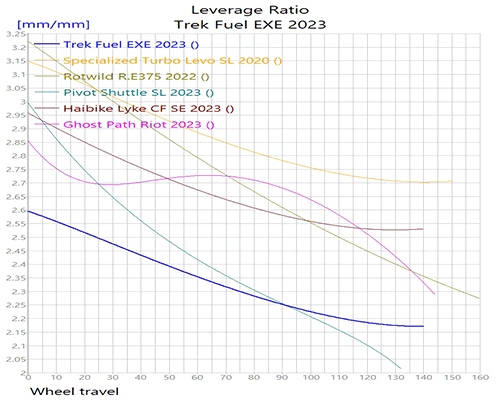

| LEVERAGE CURVE | LP
|

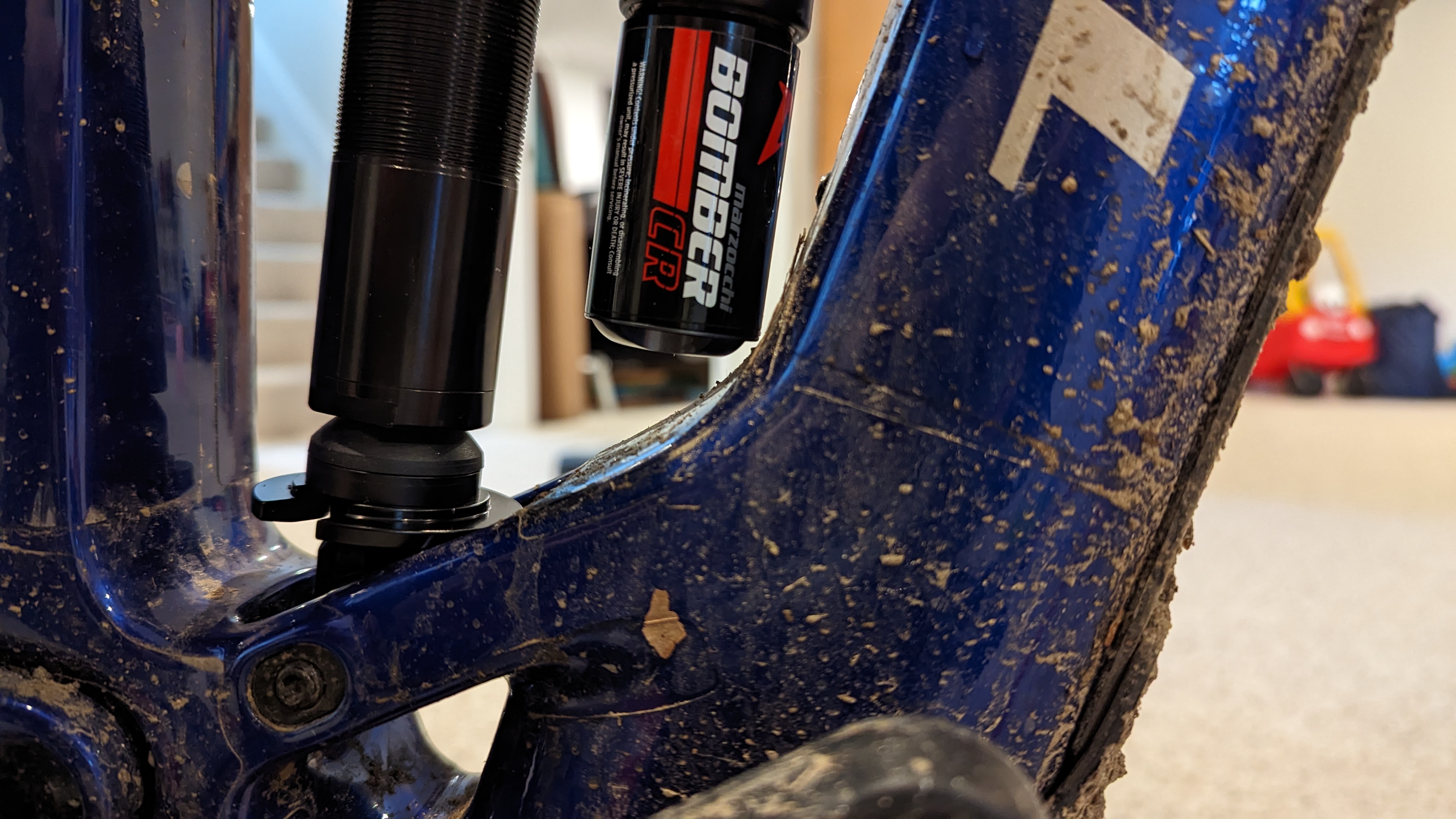

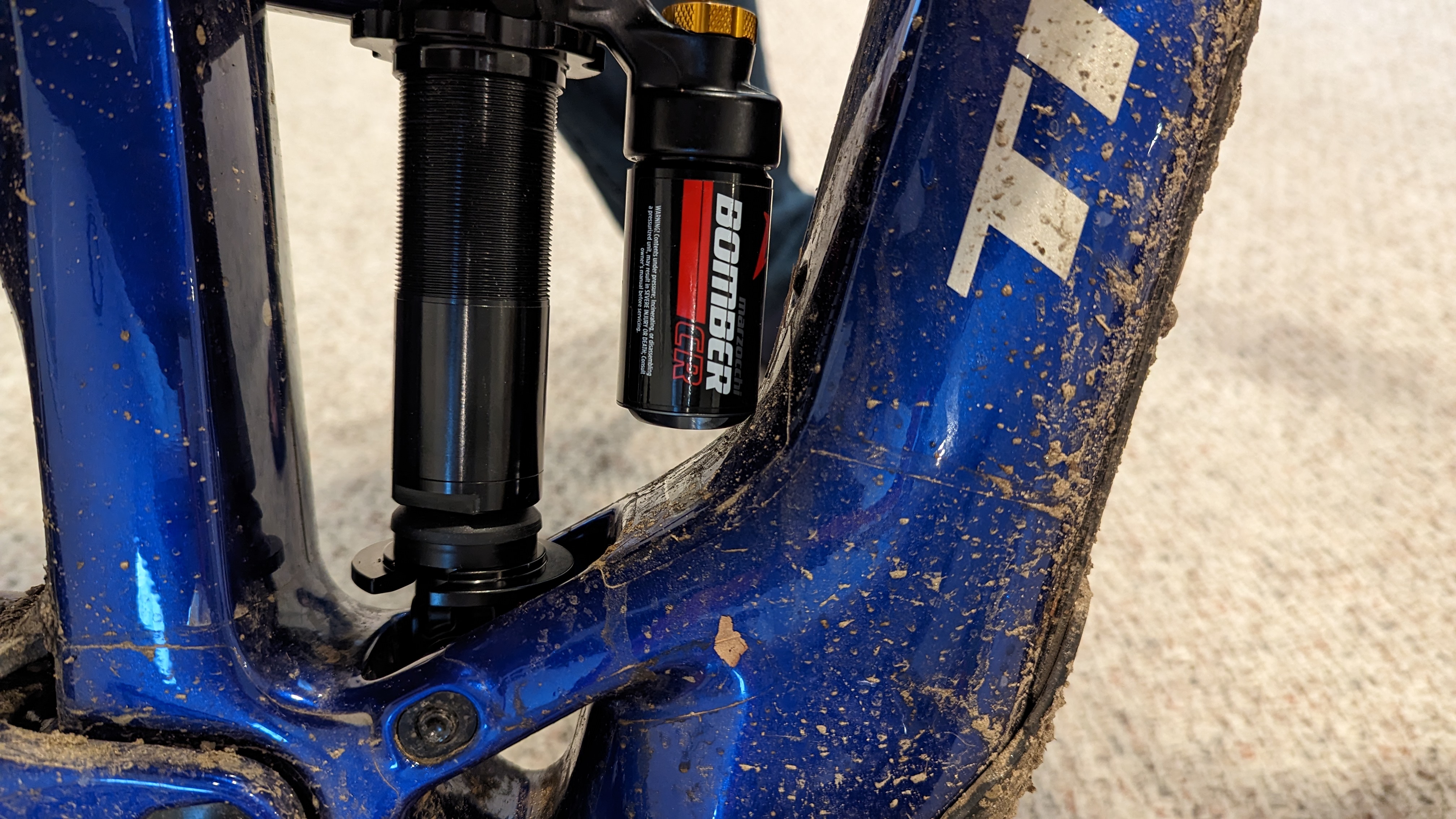

| Installed Pictures | Installed Views
|
| SHOCK TUNE | PROGRESSIVE LP |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 350,400,450,500,550,550, |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 150 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | 40,45,50,55,60,65, |
| COMMENTS | Reservoir needs to be shortened by 12 mm for small, 10 mm for Large with 62.5 mm stroke. |
| COMMENTS |
