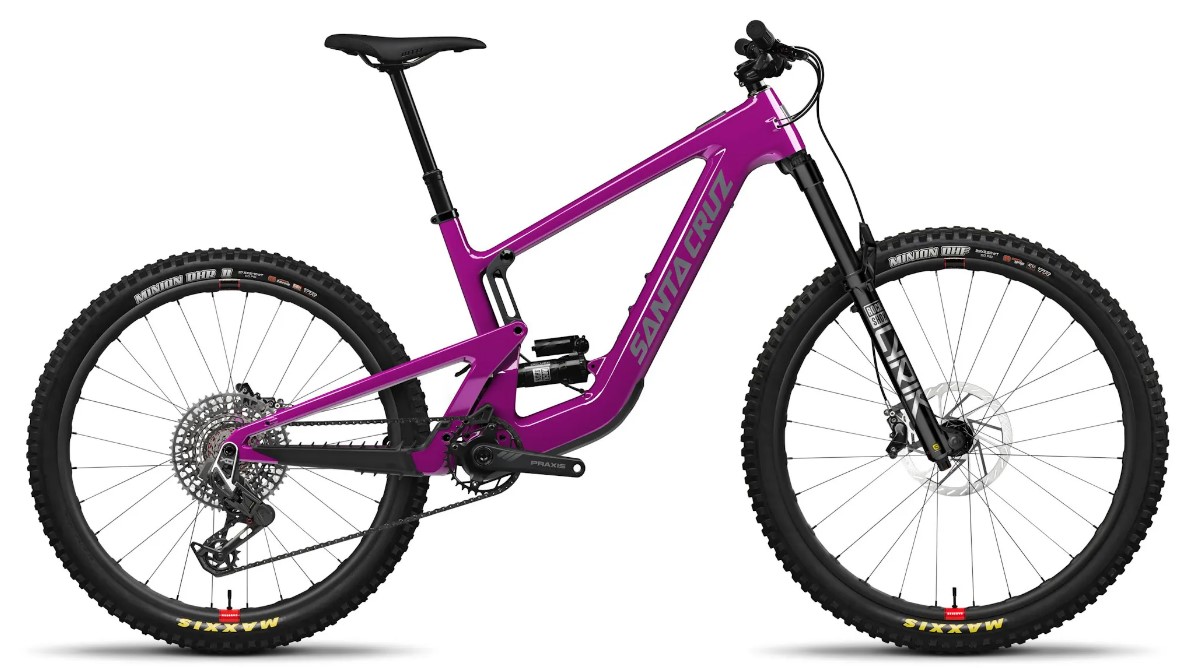

2023 SANTA CRUZ Heckler SL
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 42 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.25 |
| SAG POINT LEVERAGE | 2.9 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 29.23 |

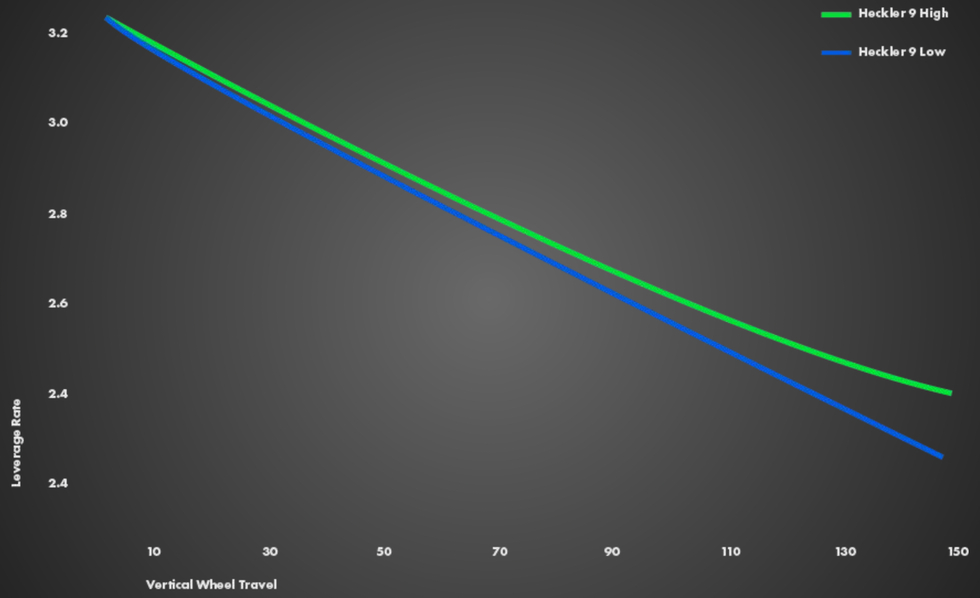

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,700, |
| HEAD TUBE ANGLE | 64.3 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | ROCKSHOX LYRIK DEBON AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,50,55,60, |
| COMMENTS | high/low setting AHTA 64.0, lower bushing is bearing style |
| COMMENTS |
