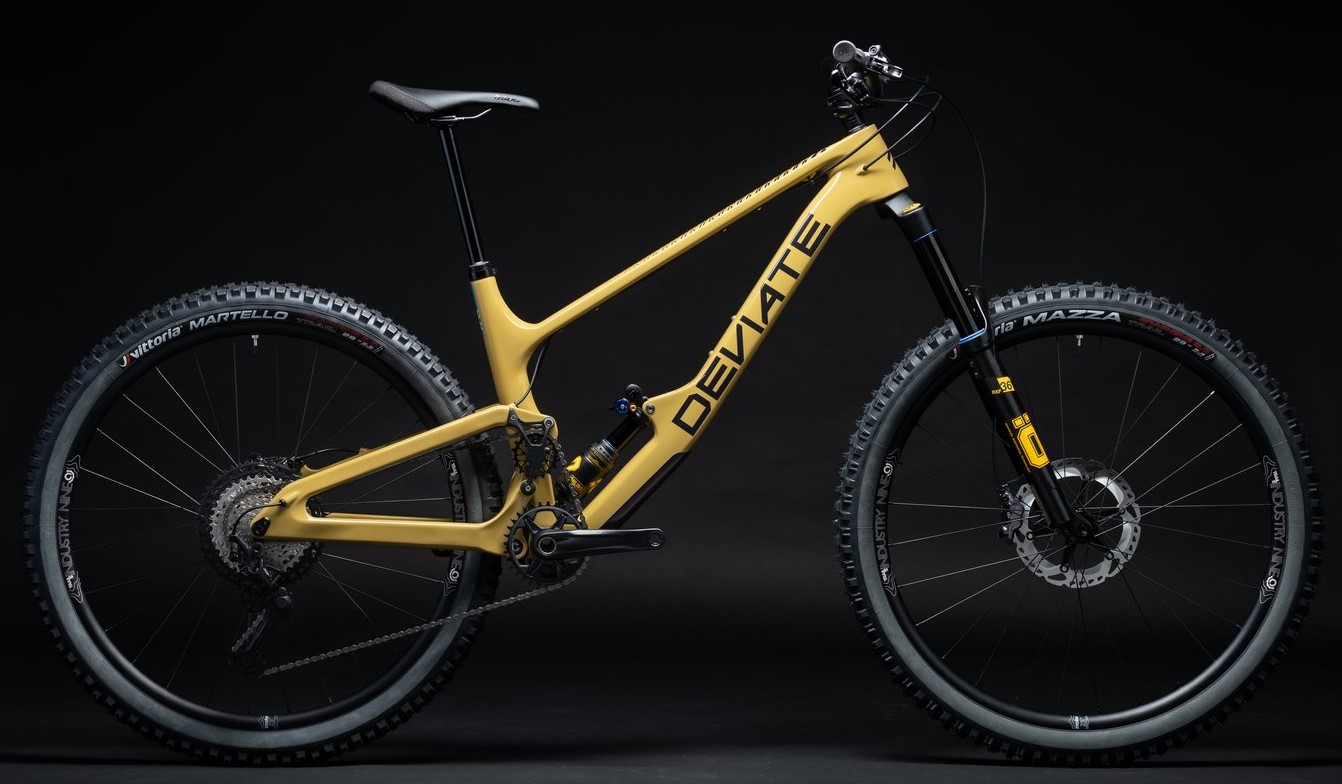

2023 DEVIATE Highlander 2
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 30.8 |
| SHOCK SIZE | 210 x 55 |
| TRAVEL MM | 145 |
| UPPER REDUCER | 40.0 x 8.0 |
| LOWER REDUCER | 12.7 fitted x 8.0 |
| LINKAGE | YOKE FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.64 |
| STARTING LEVERAGE | 2.87 |
| SAG POINT LEVERAGE | 2.84 |
| ENDING LEVERAGE | 2.43 |
| PROGRESSION % | 15.33 |

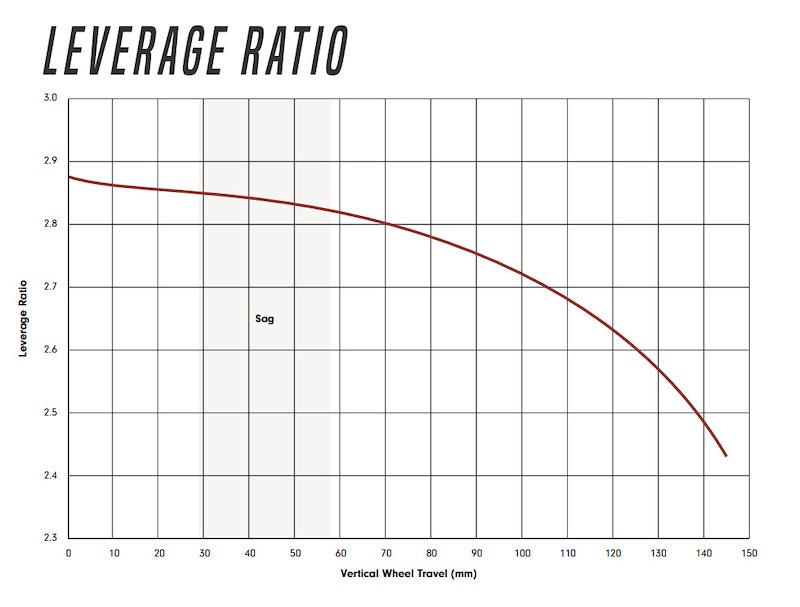

| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 65.0 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | CC HELM MK II |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | High Pivot rocker system, Yoke attachment |
| COMMENTS |
