All data is our best estimate based on the information provided online

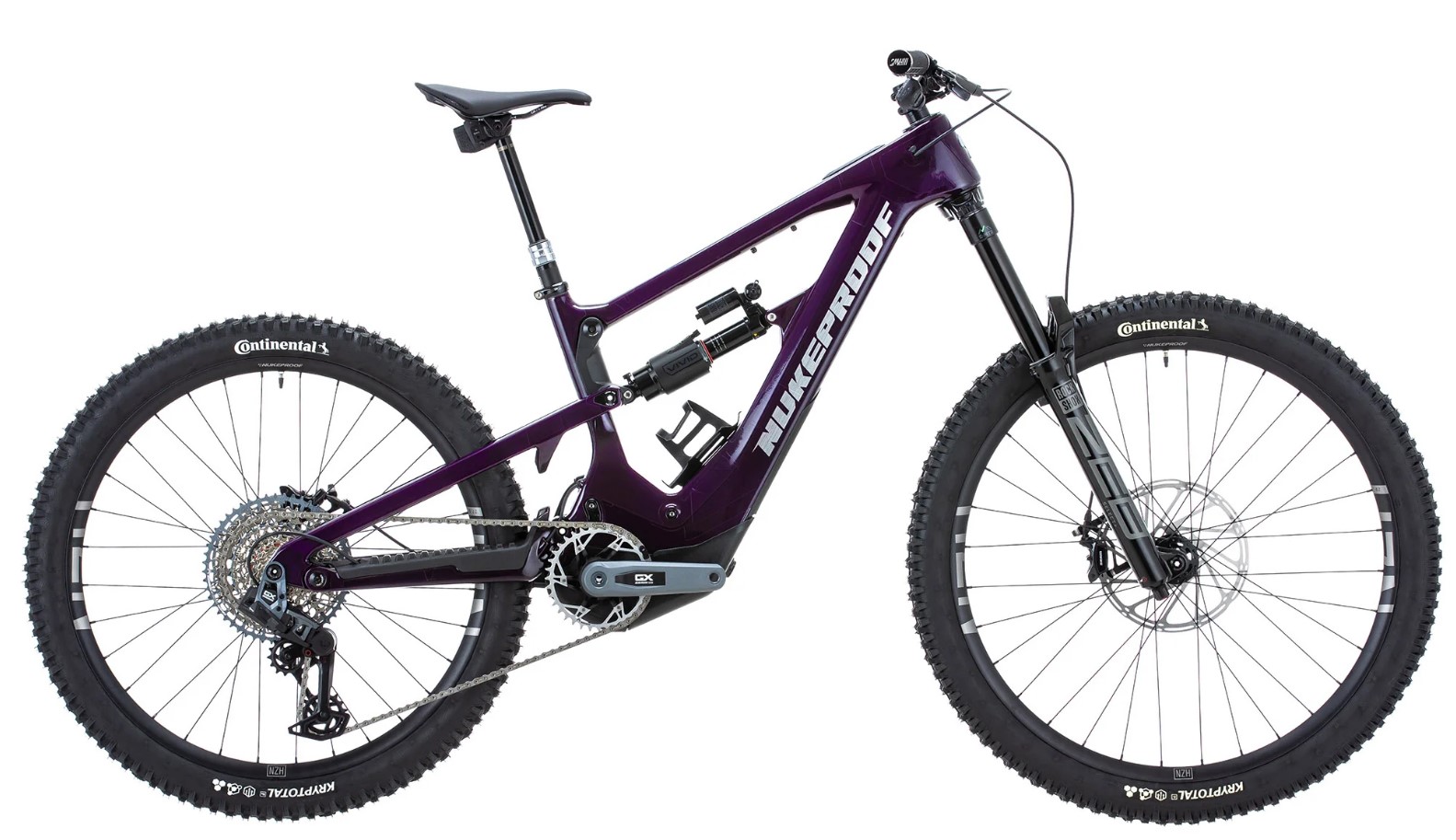

2023 NUKEPROOF MEGAWATT CARBON
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 53.5 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 170 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 2.96 |
| SAG POINT LEVERAGE | 2.89 |
| ENDING LEVERAGE | 2.24 |
| PROGRESSION % | 24.3 |

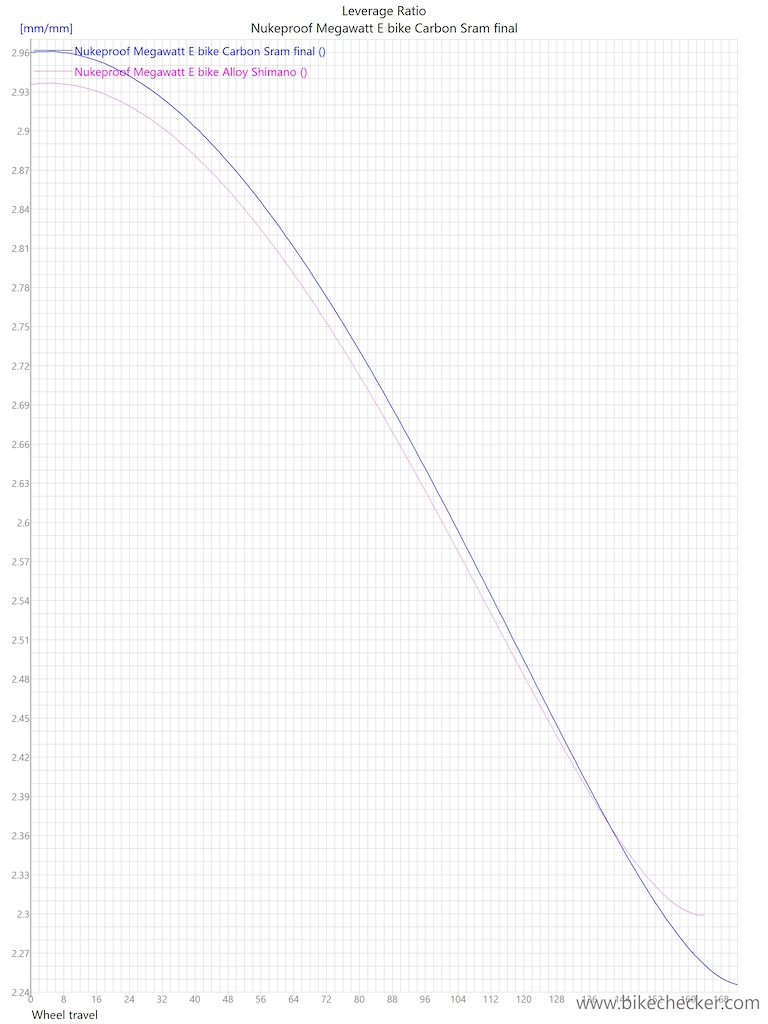

| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | ROCKSHOX VIVID |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 400,450,500,500,550,600, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,45,50,55,60, |
| COMMENTS | slight regressive /vp initial stroke, bearing lower mount |
| COMMENTS |
