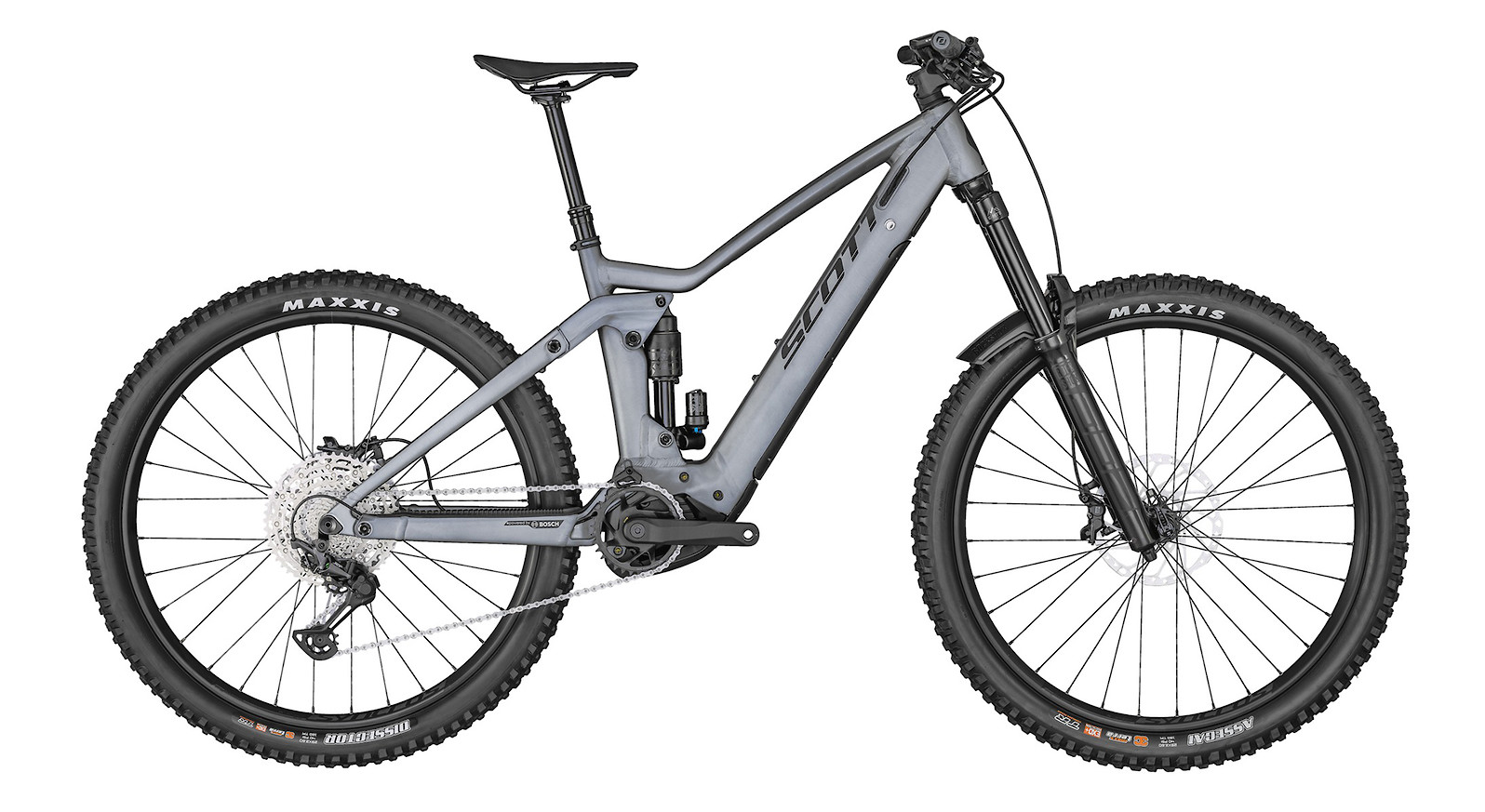

2023 SCOTT RANSOM 920 E-Bike
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 54.9 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 160 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | |
| LINKAGE | FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.91 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.89 |
| ENDING LEVERAGE | 2.4 |
| PROGRESSION % | 22.6 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | Fox DPS NUDE |
| OEM SHOCK | FOX FLOAT DPS PERFORMANCE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING (140/160/180/200/220/240 LBS) | 500,600,650,700,750,800, |
| HEAD TUBE ANGLE | 64.6 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
| SUGGESTED FORK SPRING WITH OUR CARTRIDGE(140/160/180/200/220/240 LBS) | 40,45,50,55,60,65, |
| COMMENTS | 64.0 option HTA, best guess for leverage |
| COMMENTS |
