All data is our best estimate based on the information provided online

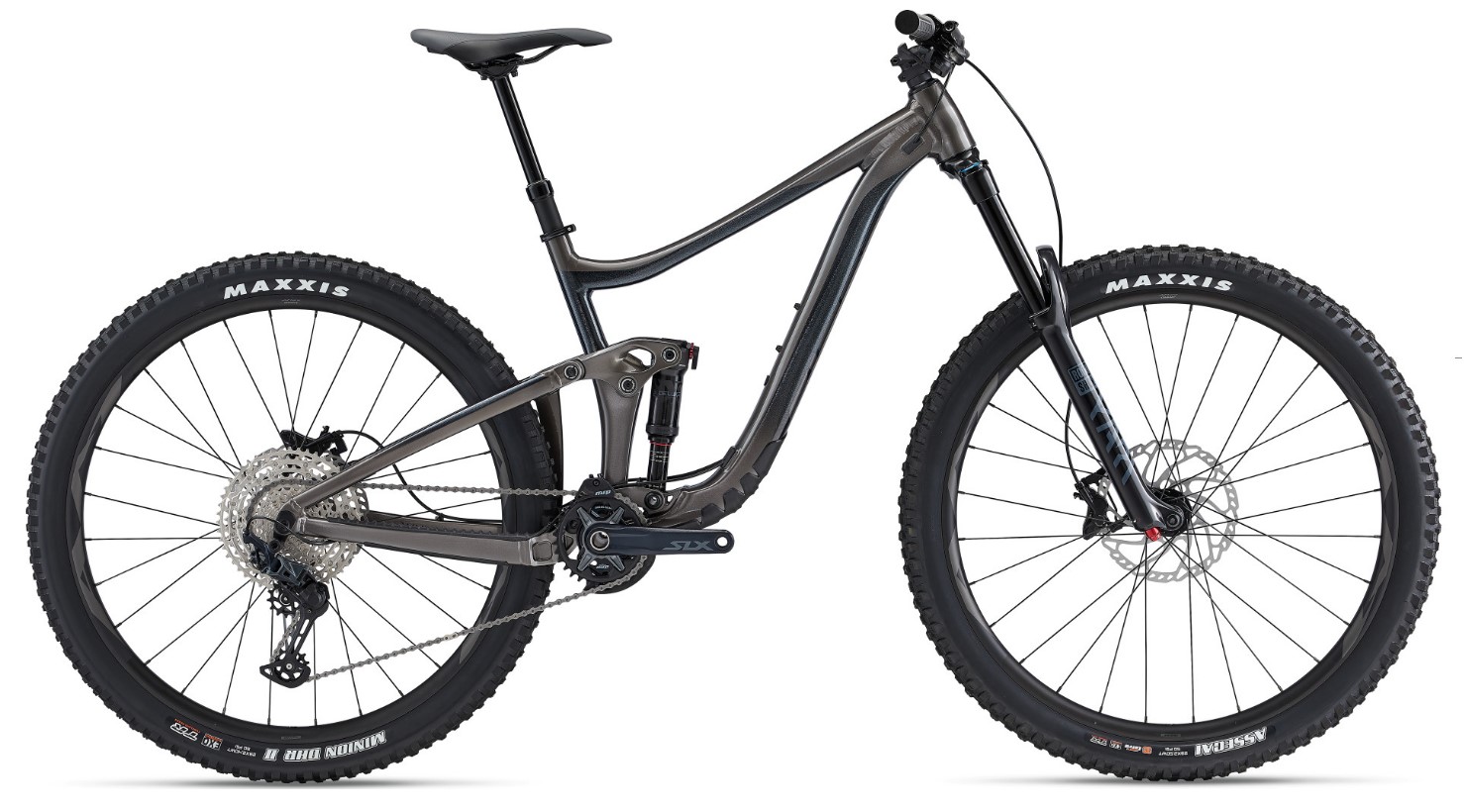

2023 GIANT Reign 29
| MODEL VERSION YEARS | |
|---|---|
| TIRE SIZE | 29 |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 34 |
| SHOCK SIZE | 205 x 60,T |
| TRAVEL MM | 146 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | DUAL-LINK VP (MAESTRO) |
| AVERAGE LEVERAGE | 2.43 |
| STARTING LEVERAGE | 2.87 |
| SAG POINT LEVERAGE | 2.53 |
| ENDING LEVERAGE | 2.28 |
| PROGRESSION % | 20.6 |

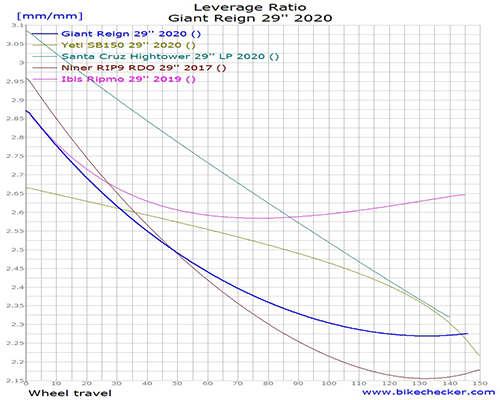

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PBLE |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 350,400,450,500,500,550, |
| HEAD TUBE ANGLE | 64.6 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,45,50,55, |
| COMMENTS | 2020-2023 Maestro dual pivot, same linkage as 2020 Reign 29 |
| COMMENTS | Reign Advance is Carbon |
