All data is our best estimate based on the information provided online

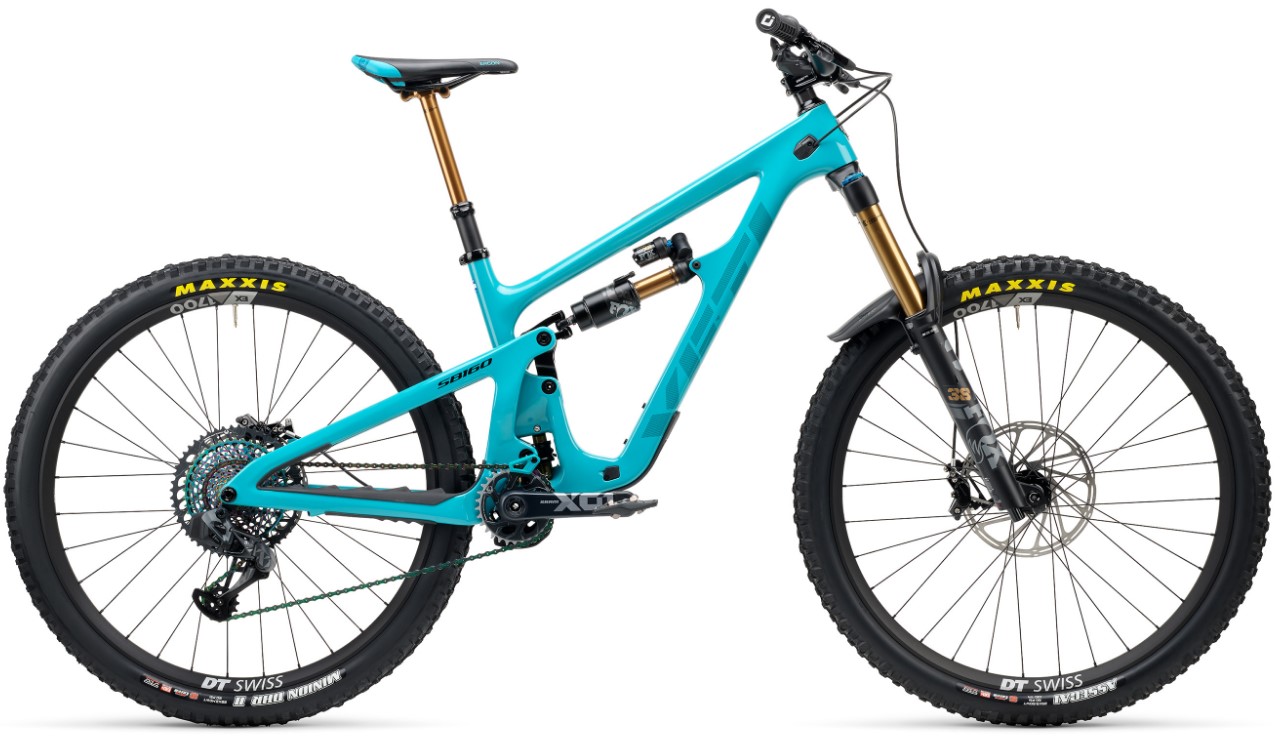

2023 YETI SB160

MODEL VERSION YEARS 2023-
TIRE SIZE 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 34
SHOCK SIZE 230 x 65
TRAVEL MM 160
UPPER REDUCER 36.0 x 8.0
LOWER REDUCER 12.7 fitted x 8.0
LINKAGE SLIDING PIVOT (LOW LEVERAGE LINEAR)
AVERAGE LEVERAGE 2.46
STARTING LEVERAGE 2.62
SAG POINT LEVERAGE 2.56
ENDING LEVERAGE 2.17
PROGRESSION % 17.2

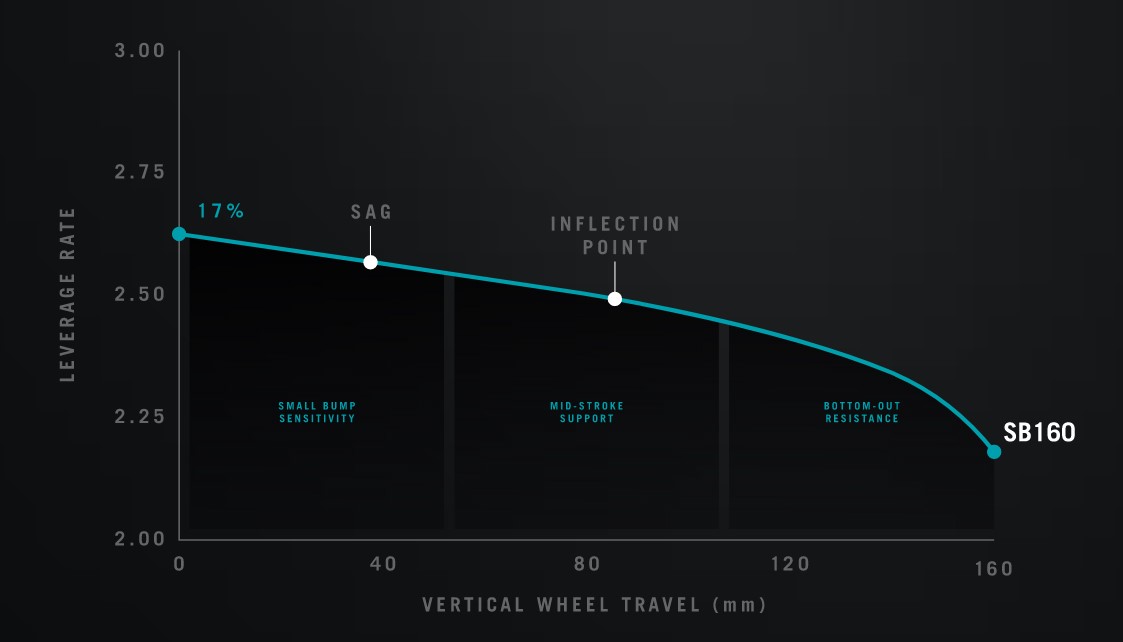

LEVERAGE CURVE LP

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE LP
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR
UPGRADE OPTION AVALANCHE CHUBIE

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,350,400,450,500,550,
HEAD TUBE ANGLE 64.0
RECOMMENDED FORK TRAVEL 170
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
UPGRADE OPTION CARTRIDGE/SPRING Fox 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,45,45,50,55,
COMMENTS Sixfinity, rocker & timing link
COMMENTS Woodie shock interferes with top tube
