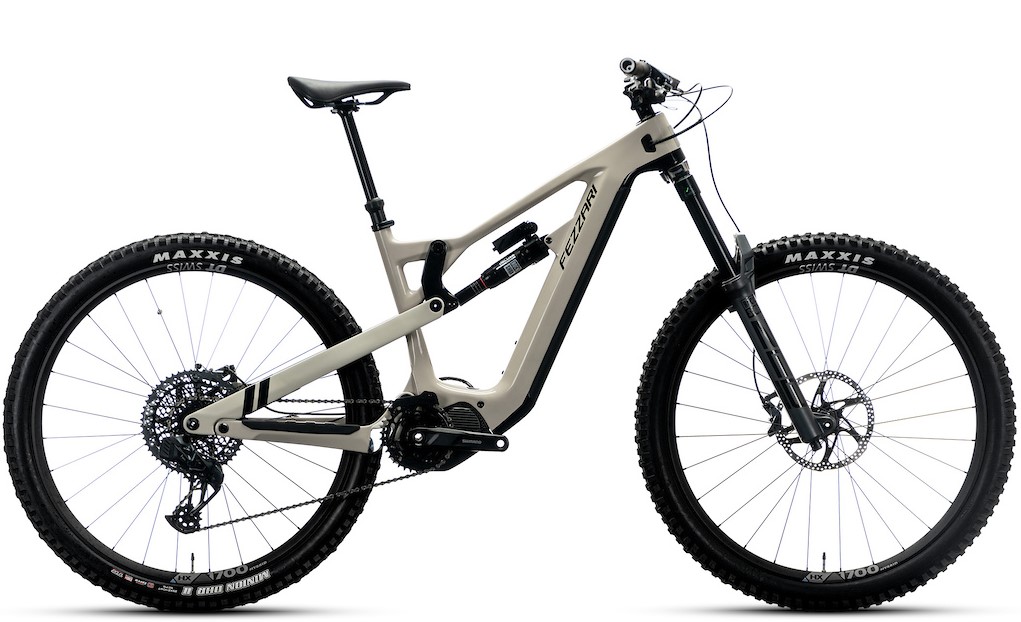

2023 FEZZARI Timp Peak
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 52 |
| SHOCK SIZE | 230 x 65 |
| TRAVEL MM | 170 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | LINKAGE DRIVEN FOUR BAR |
| AVERAGE LEVERAGE | 2.62 |
| STARTING LEVERAGE | 3.1 |
| SAG POINT LEVERAGE | 2.9 |
| ENDING LEVERAGE | 2.1 |
| PROGRESSION % | 32.3 |
| LEVERAGE CURVE | PE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PE |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| OEM SHOCK | DVO TOPAZ |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,500,550,600, |
| HEAD TUBE ANGLE | 64.0 |
| RECOMMENDED FORK TRAVEL | 170 |
| OEM FORK | ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,45,50,55,60, |
| COMMENTS | Now Ari Bikes, can run a DH fork, best estimate leverage |
| COMMENTS |
