All data is our best estimate based on the information provided online

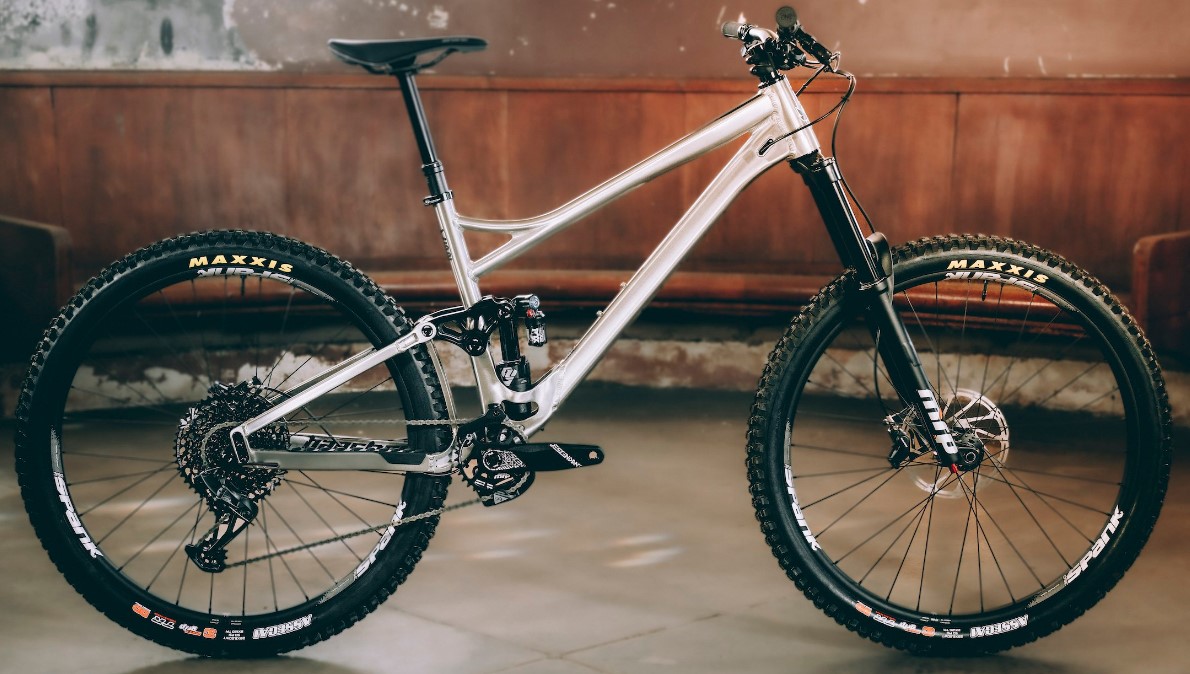

2023 BANSHEE Titan V3.2
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 32 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 155 |
| UPPER REDUCER | Trunnion x 10.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.38 |
| STARTING LEVERAGE | 2.97 |
| SAG POINT LEVERAGE | 2.48 |
| ENDING LEVERAGE | 2.20 |
| PROGRESSION % | 25.93 |

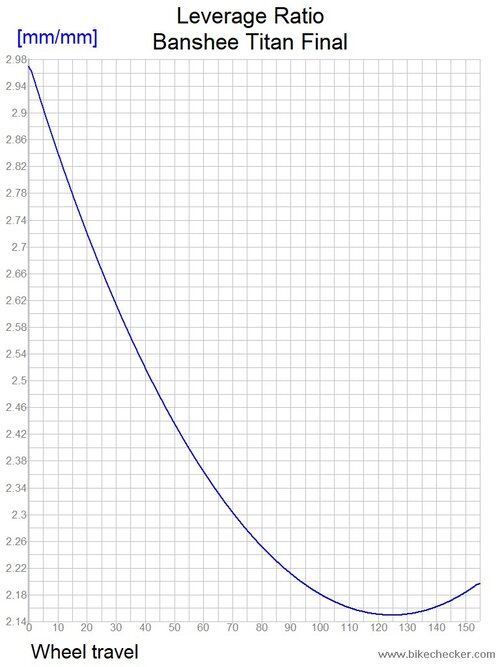

| LEVERAGE CURVE | PR
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/REGRESSIVE PR |
| OEM SHOCK | FOX FLOAT X2 |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | 300,350,400,450,450,500, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | MEZZER EXP |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX LYRIK HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | last 30-40 mm is linear/ regressive, 64.0 adjustable HTA |
| COMMENTS |
