All data is our best estimate based on the information provided online

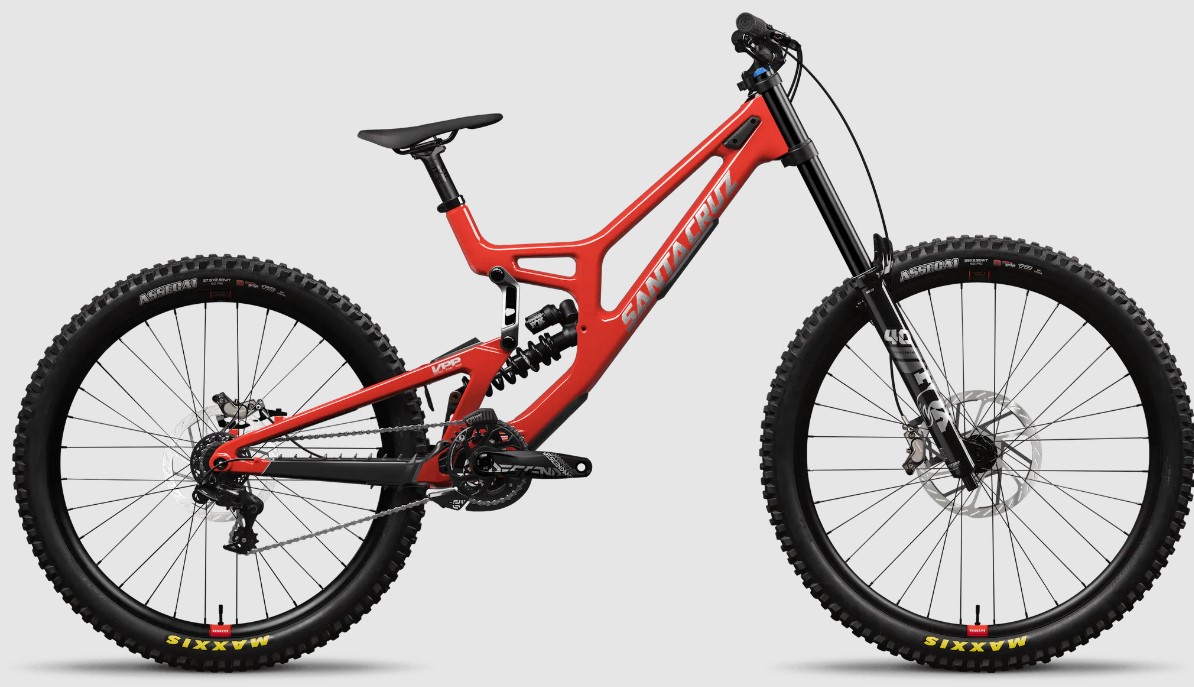

2023 SANTA CRUZ V10.8 Carbon
| MODEL VERSION YEARS | 2023- |
|---|---|
| TIRE SIZE | 27.5 or 29 |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 37 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 208 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.77 |
| STARTING LEVERAGE | 3.5 |
| SAG POINT LEVERAGE | 2.97 |
| ENDING LEVERAGE | 2.36 |
| PROGRESSION % | 32.57 |

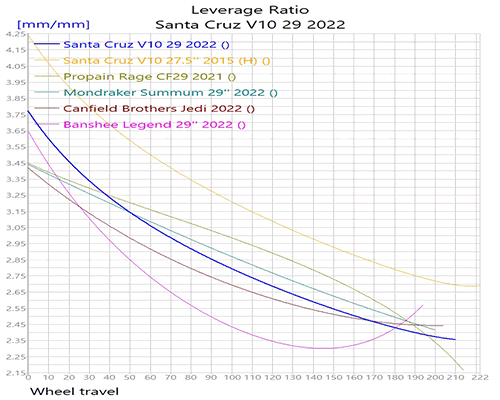

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | AVALANCHE WOODIE |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | AVALANCHE CHUBIE |
| SUGGESTED SHOCK SPRING | 350,400,400,450,500,550, |
| HEAD TUBE ANGLE | 63.0 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 25,30,35,35,40,45, |
| COMMENTS | Mixed front and rear up to size large, 29 size XL, med 62.9 HTA, low 62.7 HTA |
| COMMENTS | Best estimate for leverage |
