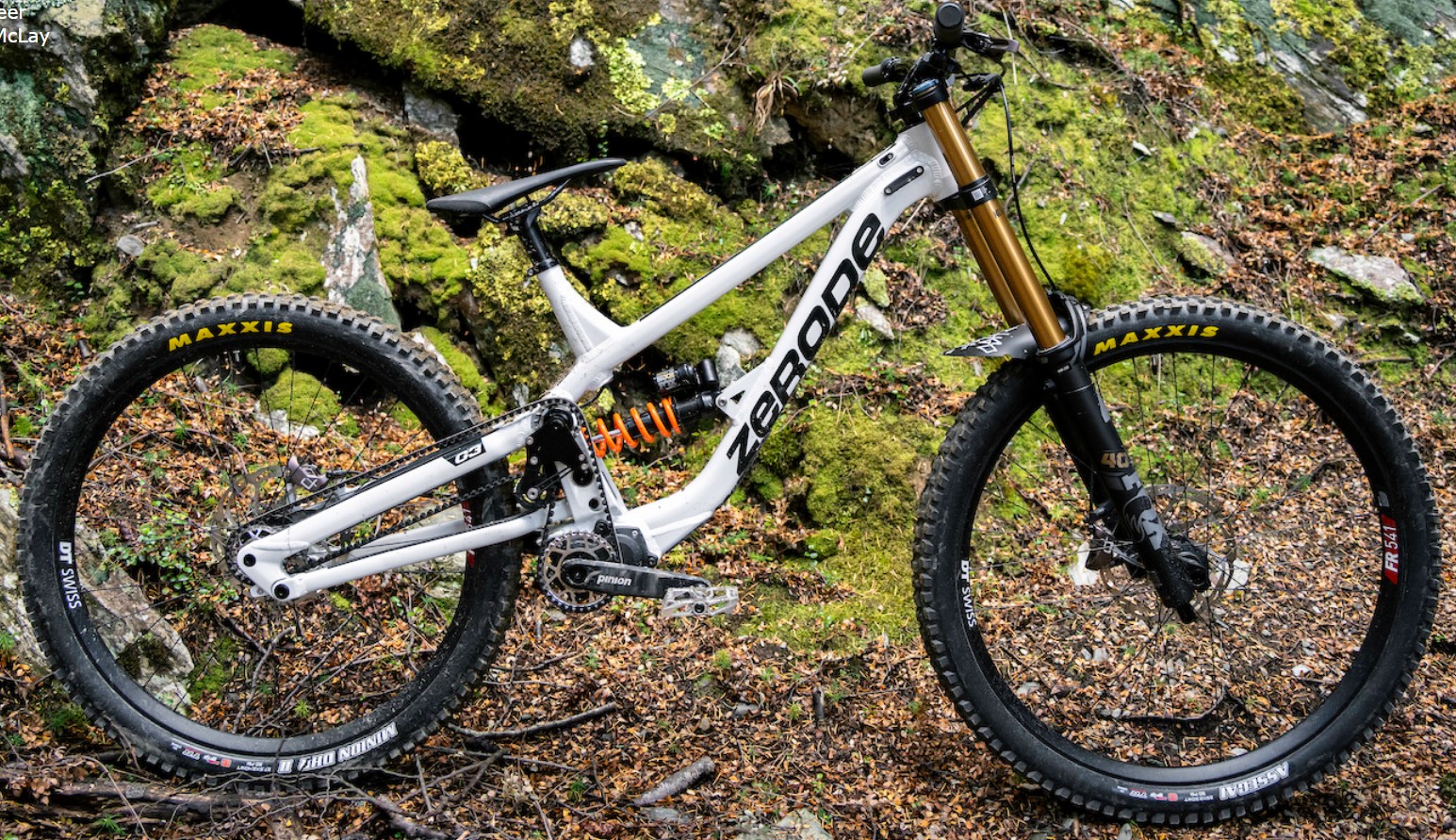

2024 ZERODE G3

MODEL VERSION YEARS 2024-
TIRE SIZE 29 Front 27.5 Rear
FRAME MATERIAL ALLOY (alum)
BIKE WEIGHT (lbs) 45
SHOCK SIZE 250 x 75
TRAVEL MM 200
UPPER REDUCER 20.0 x 8.0
LOWER REDUCER 20.0 x 8.0
LINKAGE LINKAGE DRIVEN FOUR BAR

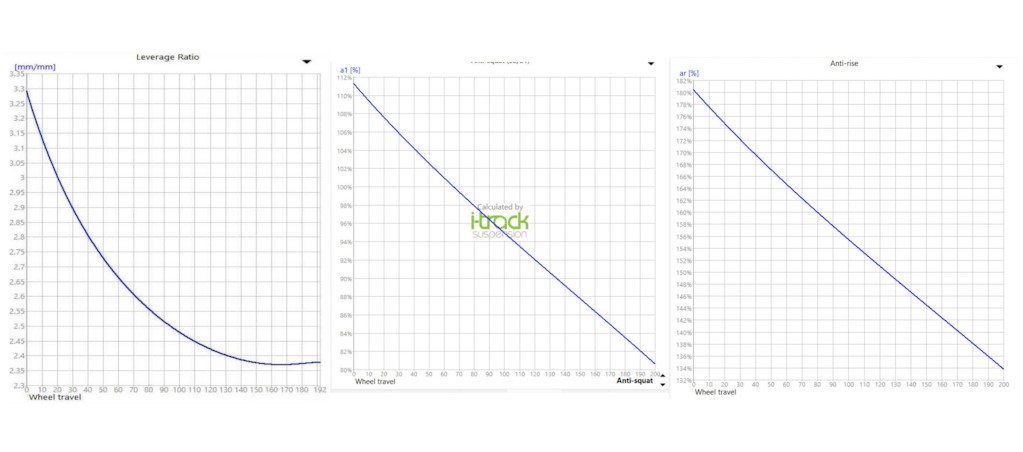

AVERAGE LEVERAGE 2.67
STARTING LEVERAGE 3.3
SAG POINT LEVERAGE 2.65
ENDING LEVERAGE 2.38
PROGRESSION % 27.9
LEVERAGE CURVE PBLE

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PBLE
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,400,400,450,500,550,
HEAD TUBE ANGLE 63.0
RECOMMENDED FORK TRAVEL 203
OEM FORK FOX 40 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING FOX 40 HYBRID OPEN BATH

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,35,40,45,50,50,
COMMENTS Belt drive gearbox, High pivot with, rearward compression, 25% sag recommended
