Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online
2024 GIANT Glory Advanced
| MODEL VERSION YEARS | 2024- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 40 |
| SHOCK SIZE | 225 x 75,T |
| TRAVEL MM | 203 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | HORST FOUR BAR (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.71 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 2.84 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 30.30 |

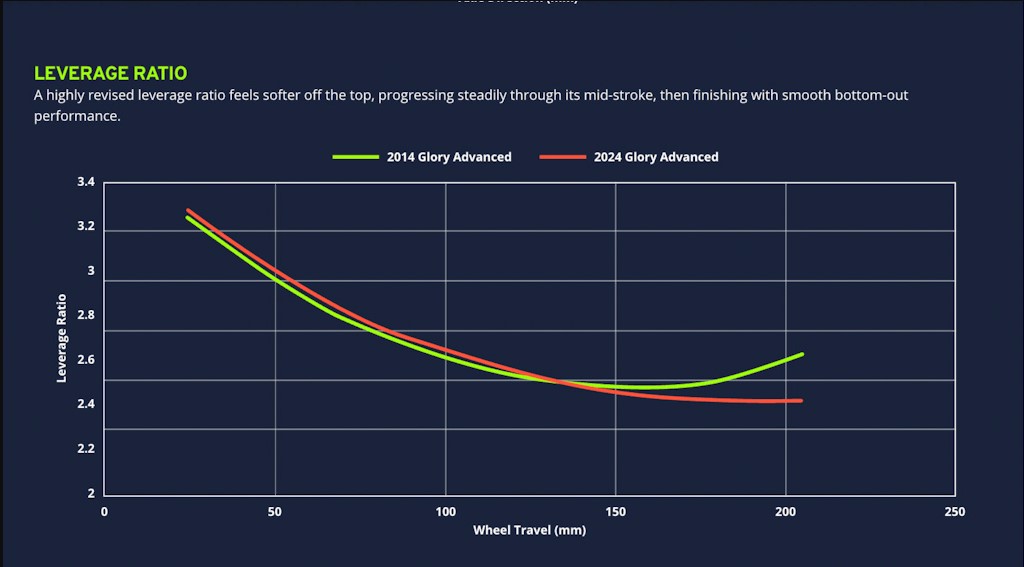

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE/LINEAR PBLE |
| OEM SHOCK | FOX DHX2 |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 62.3 |
| RECOMMENDED FORK TRAVEL | 203 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 40 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER 38 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | offset head set 61.6/61.9/62.3, chain stay chip 10 mm, 3 position BB height 27.5/29 |
| COMMENTS |
