Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

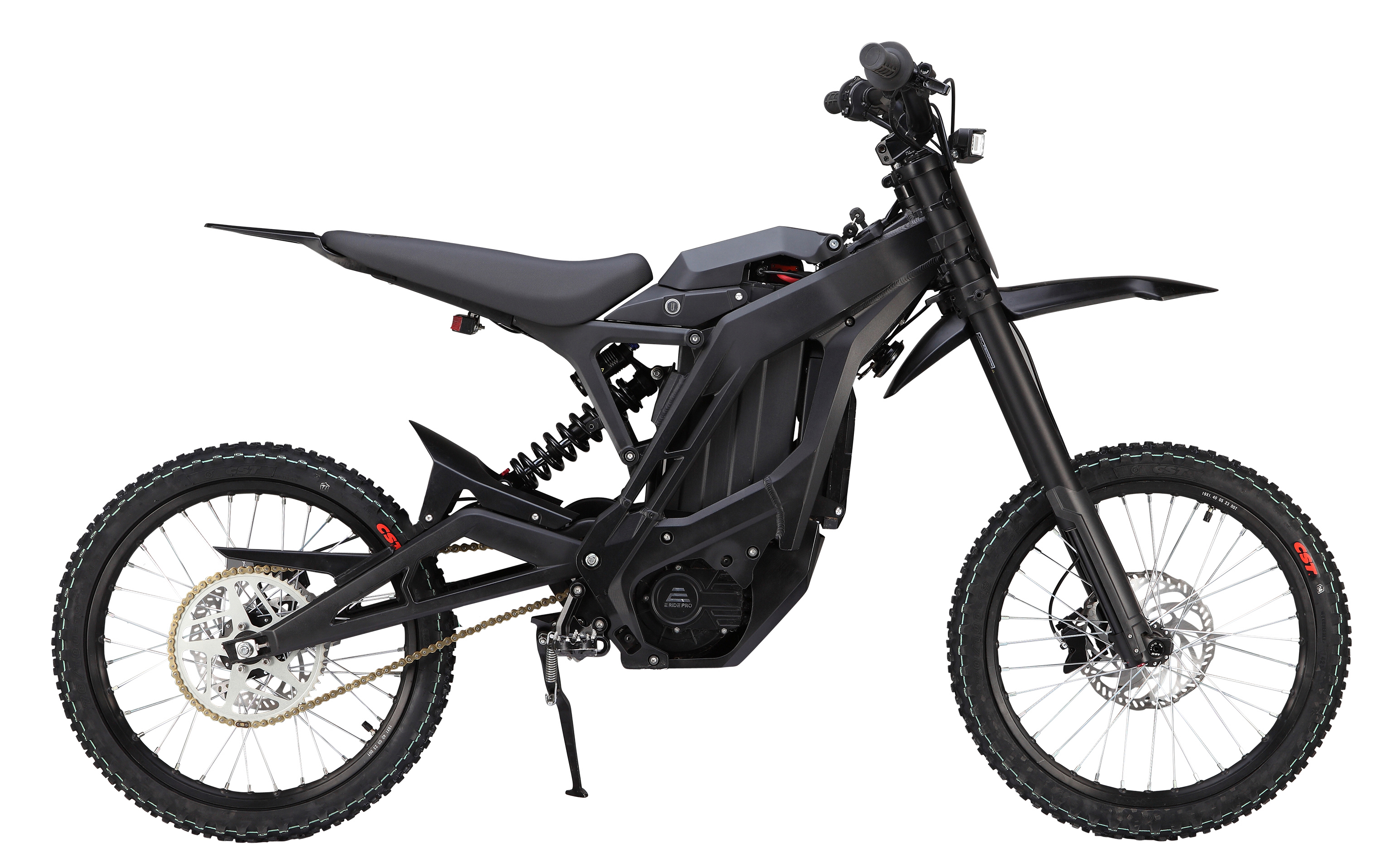

2024 E-RIDE Pro SS 2.0

MODEL VERSION YEARS 2024-
TIRE SIZE 19 Front 19 Rear
FRAME MATERIAL ALLOY (alum)
BIKE WEIGHT (lbs) 139
SHOCK SIZE 10.5 x 3.50
TRAVEL MM 210
UPPER REDUCER 23.8 x 8.0
LOWER REDUCER 23.8 x 8.0
LINKAGE ROCKER LINKAGE (RISING RATE)
AVERAGE LEVERAGE 2.36
STARTING LEVERAGE 3.1
SAG POINT LEVERAGE 2.7
ENDING LEVERAGE 2.2
PROGRESSION % 29.0
LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE HPL
OEM SHOCK DNM Burner-RCP 2S
UPGRADE OPTION BOMBER CR
UPGRADE OPTION AVALANCHE WOODIE
UPGRADE OPTION FOX VANRC

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,400,450,450,500,500,
HEAD TUBE ANGLE 64
RECOMMENDED FORK TRAVEL 203
OEM FORK RST USD
UPGRADE OPTION CARTRIDGE/SPRING Fox 40 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX BOXXER 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 45,50,55,60,60,65,
COMMENTS 30 lb fork spring. Weight includes 60V Battery and typical upgrades, BEST ESTIMATE FOR LEVERAGE
COMMENTS 240 x 87 stock shock, KKE SHOCK SPRING 450 X 192 LG X 36 MM ID ENDS 38.5 MIDDLE- USE CANE CREEK ADAP
