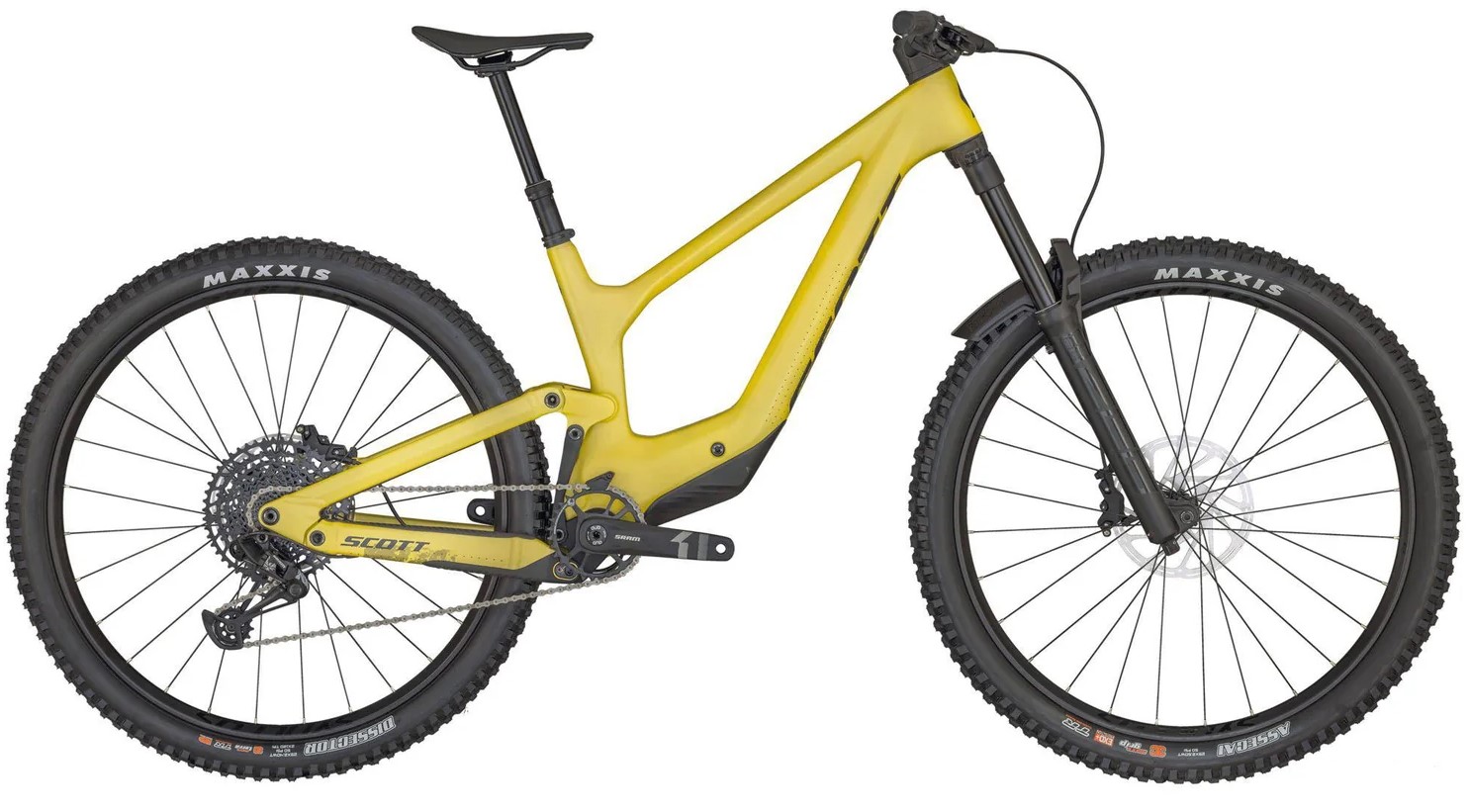

2024 SCOTT RANSOM 920

MODEL VERSION YEARS 2024-
TIRE SIZE 27.5 or 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 36.1
SHOCK SIZE 205 x 65,T
TRAVEL MM 170
UPPER REDUCER Trunnion x 10.0
LOWER REDUCER
LINKAGE SIX BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.62
STARTING LEVERAGE 3.0
SAG POINT LEVERAGE 2.77
ENDING LEVERAGE 2.3
PROGRESSION % 23.3
LEVERAGE CURVE PL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PL
OEM SHOCK FOX FLOAT X
UPGRADE OPTION BOMBER CR
UPGRADE OPTION FOX DHX

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 350,400,450,500,550,550,
HEAD TUBE ANGLE 63.8
RECOMMENDED FORK TRAVEL 170
OEM FORK FOX 38 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID
UPGRADE OPTION CARTRIDGE/SPRING Fox 38 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 35,40,45,50,50,55,
COMMENTS Adjustable travel 130-170 Climb-Ramp Control-Descend, +/- .6 degree HTA
COMMENTS Best estimate for Leverage
