Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

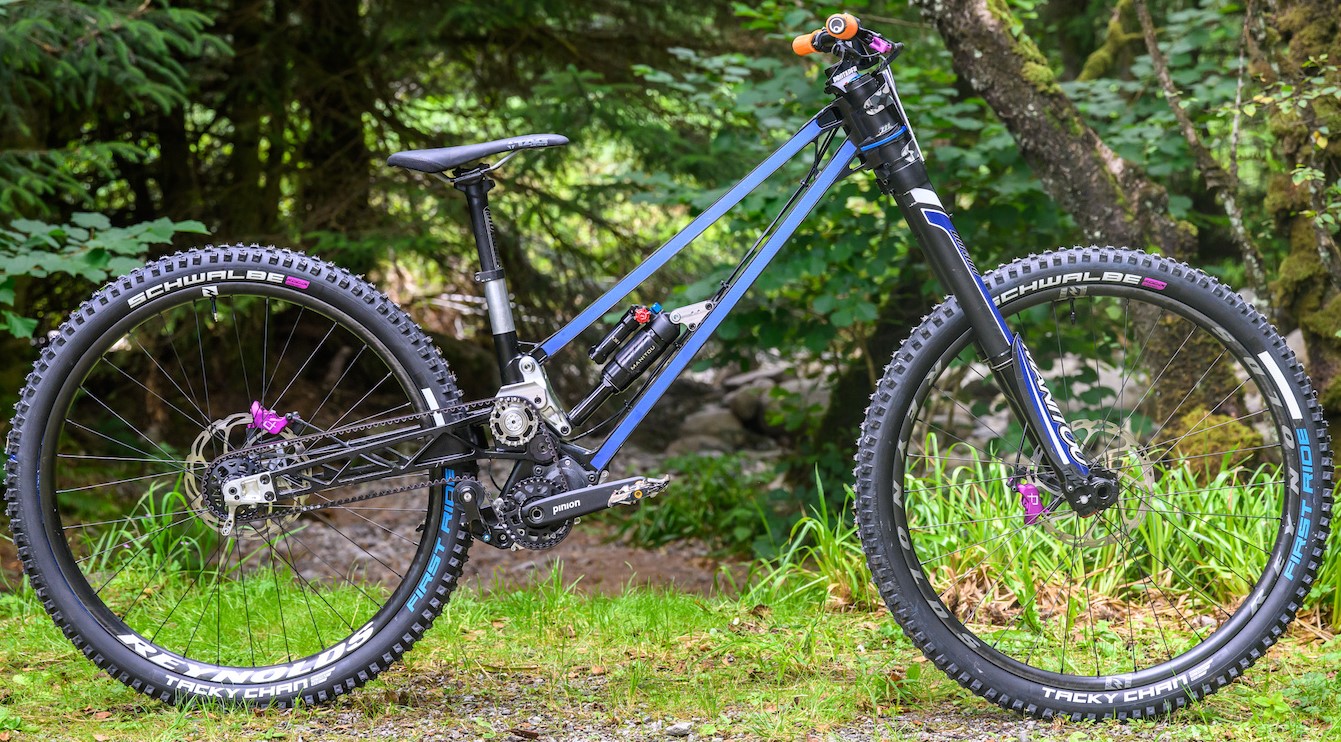

2024 GAMUX Sego
| MODEL VERSION YEARS | 2024 |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 39 |
| SHOCK SIZE | 250 x 75 |
| TRAVEL MM | 200 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | SINGLE PIVOT LINKAGE DRIVEN |
| AVERAGE LEVERAGE | 2.67 |
| STARTING LEVERAGE | 3.12 |
| SAG POINT LEVERAGE | 2.85 |
| ENDING LEVERAGE | 2.13 |
| PROGRESSION % | 31.7 |

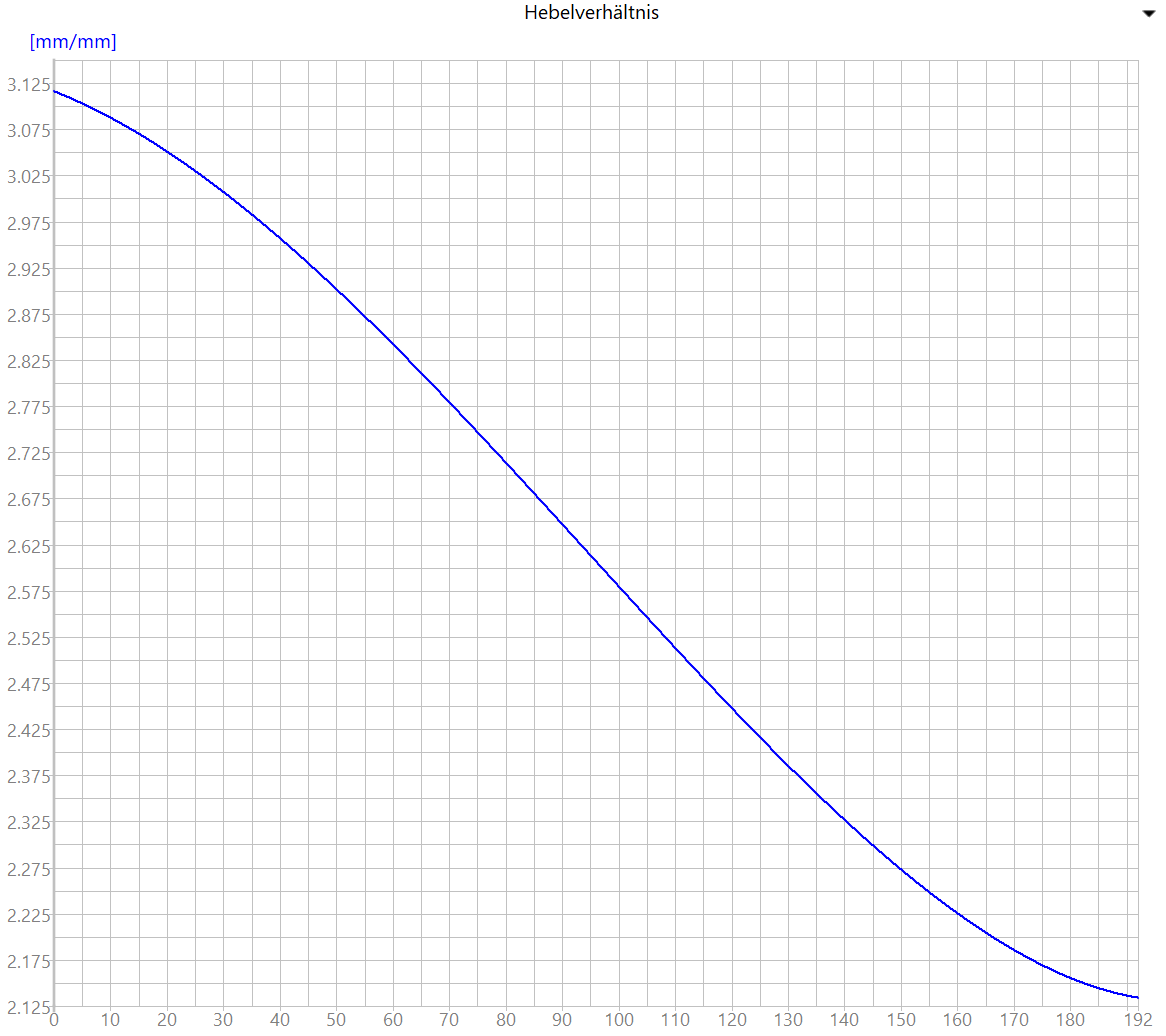

| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PBLE |
| OEM SHOCK | OHLINS TTX22 |
| OEM SHOCK | MANITOU MARA PRO |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX VANRC |
| UPGRADE OPTION | ROCKSHOX COIL SUPER DELUXE |
| SUGGESTED SHOCK SPRING | 350,350,400,450,500,550, |
| HEAD TUBE ANGLE | 63.0 |
| RECOMMENDED FORK TRAVEL | 200 |
| OEM FORK | DORADO PRO |
| UPGRADE OPTION CARTRIDGE/SPRING | DORADO PRO HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | DORADO DUAL |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 40 HYBRID OPEN BATH |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,30,35,40,40,45, |
| COMMENTS | Bonded Carbon tubes, gearbox, belt drive |
| COMMENTS |
