Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

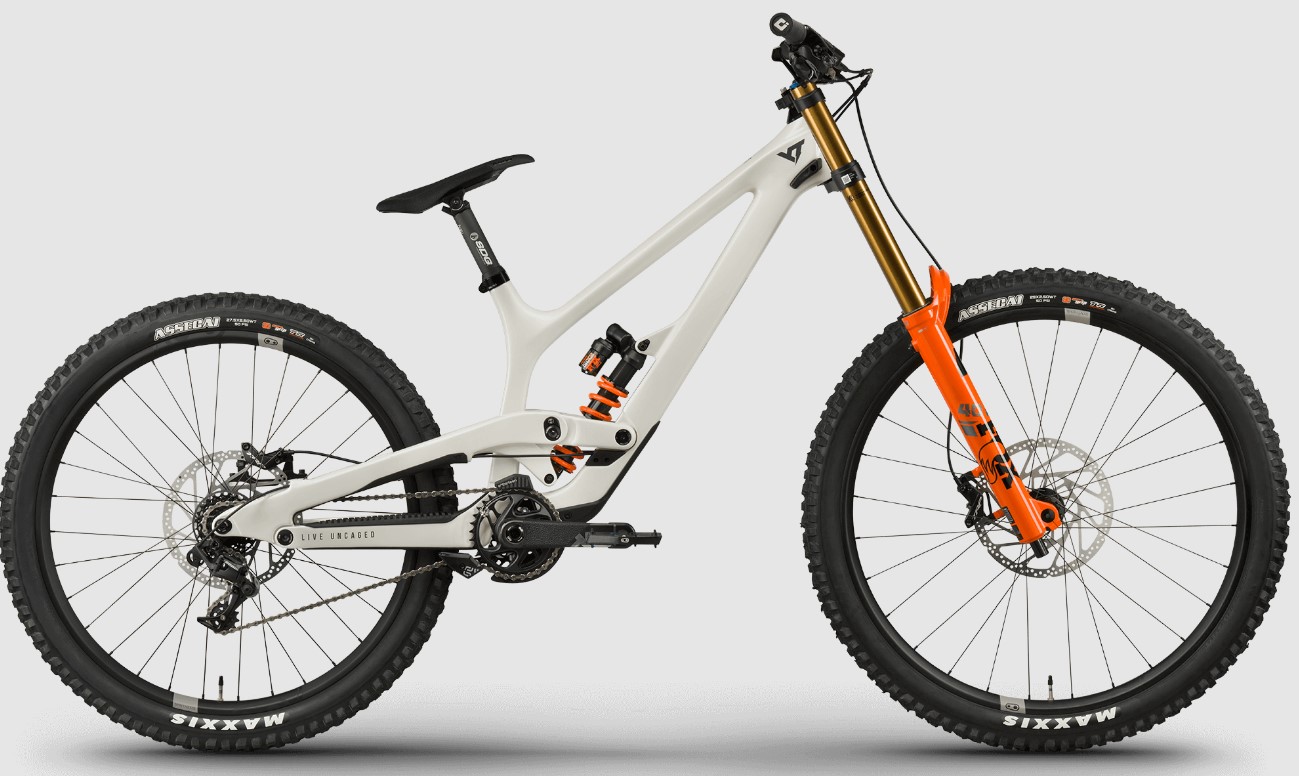

2024 YT Industries Tues MX

MODEL VERSION YEARS 2024-2025
TIRE SIZE 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 35.4
SHOCK SIZE 250 x 75
TRAVEL MM 200
UPPER REDUCER 20.0 x 8.0
LOWER REDUCER 30.0 x 8.0
LINKAGE HORST FOUR BAR (PROGRESSIVE)
AVERAGE LEVERAGE 2.67
STARTING LEVERAGE 3.3
SAG POINT LEVERAGE 2.93
ENDING LEVERAGE 2.13
PROGRESSION % 35.45
LEVERAGE CURVE HPL

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE HPL
OEM SHOCK FOX DHX2
OEM SHOCK FOX FLOAT X2
OEM SHOCK ROCKSHOX COIL SUPER DELUXE
UPGRADE OPTION BOMBER CR
UPGRADE OPTION ROCKSHOX COIL SUPER DELUXE

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 300,350,400,450,500,500,
HEAD TUBE ANGLE 63.2
RECOMMENDED FORK TRAVEL 203
OEM FORK FOX 40 FLOAT
UPGRADE OPTION CARTRIDGE/SPRING Fox 40 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX BOXXER HYBRID
UPGRADE OPTION CARTRIDGE/SPRING BOMBER 58 HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 25,30,35,35,40,45,
COMMENTS Chain stay adjustment long/short, flip link for 27.5/29 rear wheel, flip chiop +/- 5 mm BB height
COMMENTS MK4, Best estimate for leverage
