Bike Build Specs

CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help

LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD

All data is our best estimate based on the information provided online

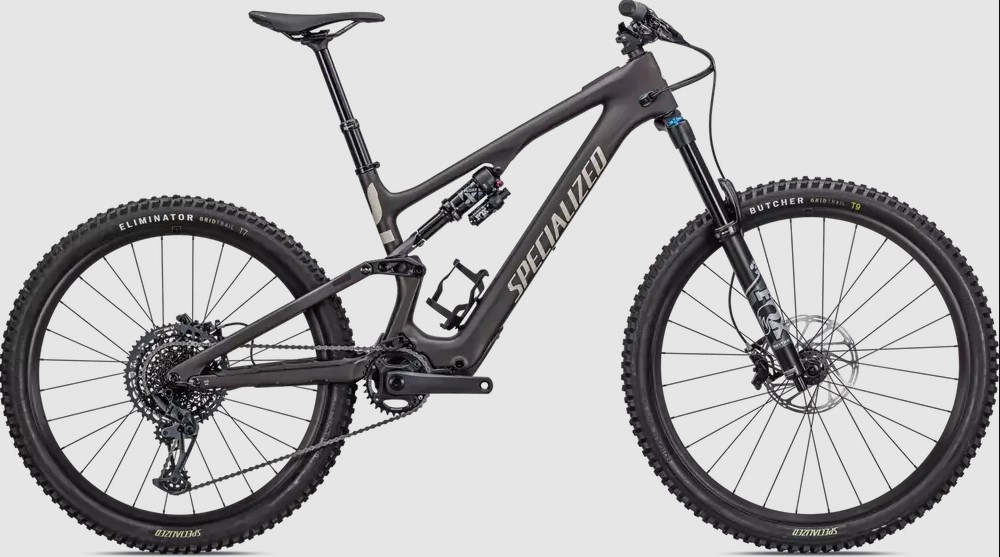

2024 SPECIALIZED Turbo Levo SL

MODEL VERSION YEARS
TIRE SIZE 29
FRAME MATERIAL CARBON
BIKE WEIGHT (lbs) 42.7
SHOCK SIZE 210 x 55
TRAVEL MM 150
UPPER REDUCER 20.0 x 8.0
LOWER REDUCER 13.90 x 12.7
LINKAGE YOKE HORST LINK (PROGRESSIVE)

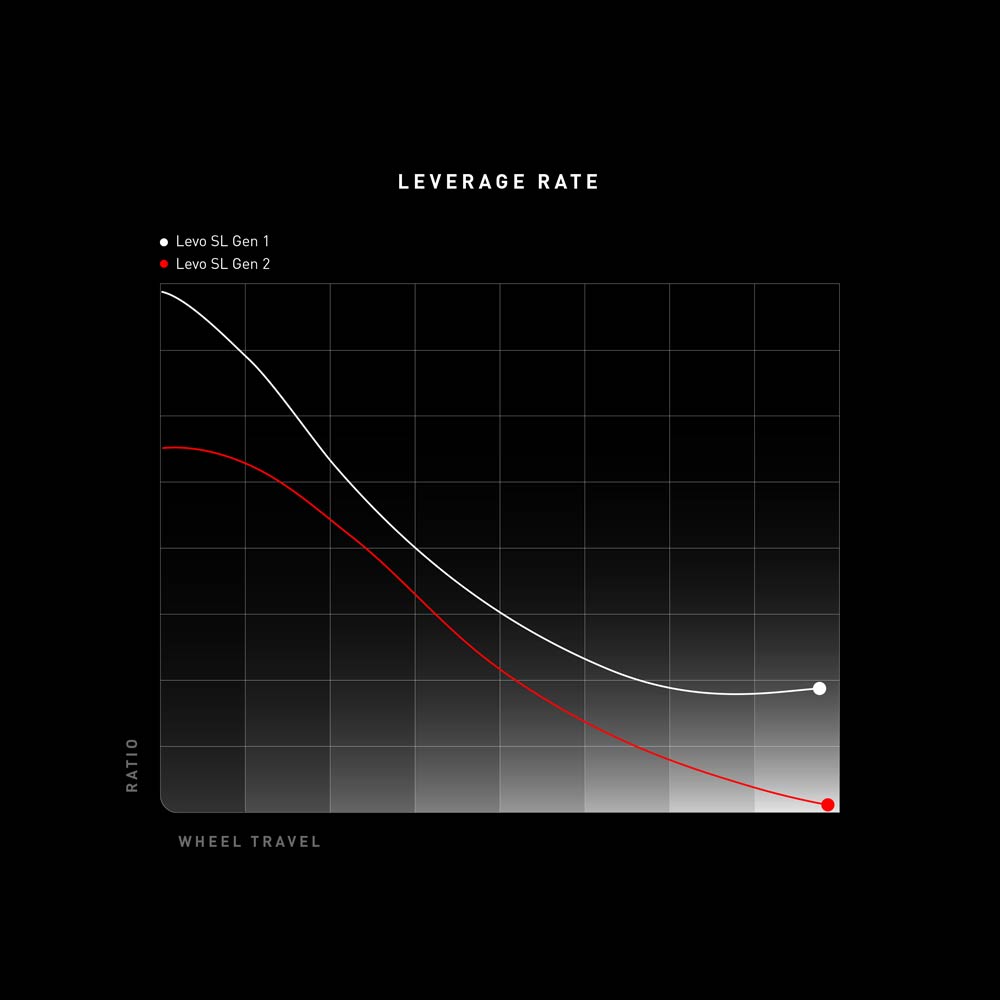

AVERAGE LEVERAGE 2.73
STARTING LEVERAGE 3.25
SAG POINT LEVERAGE 2.9
ENDING LEVERAGE 2.7
PROGRESSION % 16.9
LEVERAGE CURVE PE

Installed PicturesInstalled Views

SHOCK TUNE PROGRESSIVE PE
OEM SHOCK FOX FLOAT X2
UPGRADE OPTION BOMBER CR

SUGGESTED SHOCK SPRING
(140/160/180/200/220/240 LBS without gear)

 450,500,550,600,650,750,
HEAD TUBE ANGLE 64.6
RECOMMENDED FORK TRAVEL 160
OEM FORK
UPGRADE OPTION CARTRIDGE/SPRING FOX 38 HYBRID
UPGRADE OPTION CARTRIDGE/SPRING ROCKSHOX ZEB HYBRID

SUGGESTED FORK SPRING WITH OUR CARTRIDGE
(140/160/180/200/220/240 LBS without gear)

 40,45,50,55,55,60,
COMMENTS Horst Pivot Flip chip, 1/2 inch flanged reducers, send 1/2 x 1/2 DU, best estimate for leverage
COMMENTS same linkage as Stumpjumper with slightly lower starting leverage.
