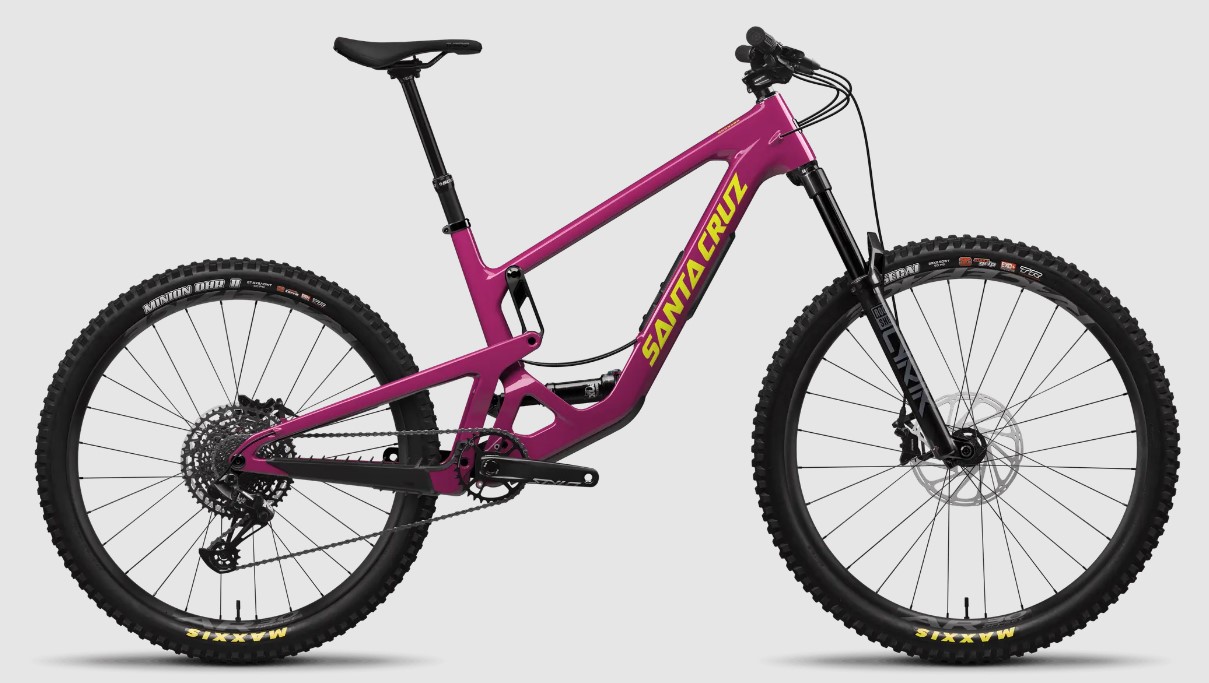

2025 SANTA CRUZ Bronson V5
| MODEL VERSION YEARS | 2024- |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | |
| SHOCK SIZE | 230 x 57.5 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 40.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | VP (PROGRESSIVE) |
| AVERAGE LEVERAGE | 2.61 |
| STARTING LEVERAGE | |
| SAG POINT LEVERAGE | |
| ENDING LEVERAGE | |
| PROGRESSION % | |
| LEVERAGE CURVE |
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE |
| OEM SHOCK | FOX FLOAT |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| UPGRADE OPTION | FOX FLOAT X |
| SUGGESTED SHOCK SPRING | |
| HEAD TUBE ANGLE | |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | |
| UPGRADE OPTION CARTRIDGE/SPRING | |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 30,35,40,40,45,50, |
| COMMENTS | |
| COMMENTS |
