Bike Build Specs
CALL 860-537-4306 or E-mail techinfo@avalanchedownhillracing.com us for more details and help
LET AVALANCHE SUSPENSION HELP CREATE YOUR BUILD
All data is our best estimate based on the information provided online

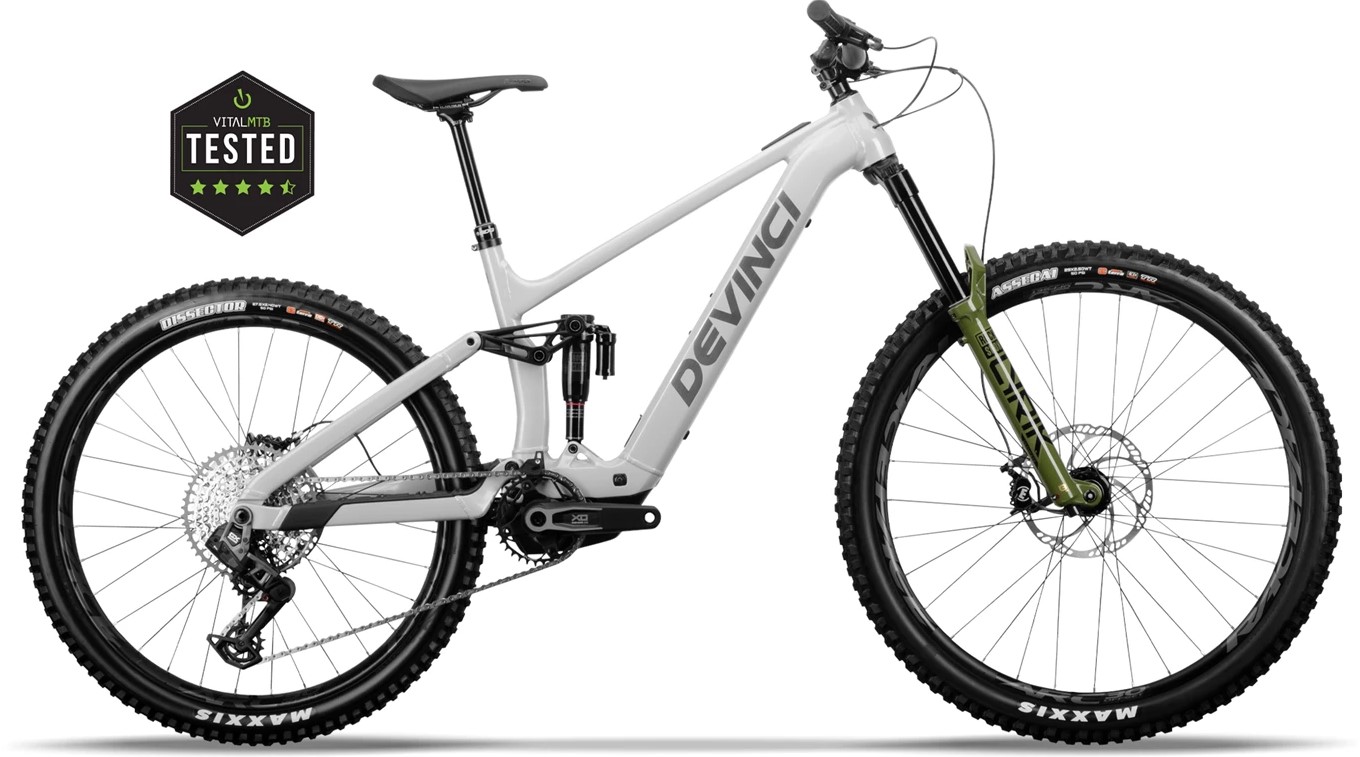

2025 DEVINCI E-Troy Lite
| MODEL VERSION YEARS | 2024- |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | ALLOY (alum) |
| BIKE WEIGHT (lbs) | 44 |
| SHOCK SIZE | 185 x 55,T |
| TRAVEL MM | 150 |
| UPPER REDUCER | |
| LOWER REDUCER | |
| LINKAGE | DW (SPLIT PIVOT) |
| AVERAGE LEVERAGE | 2.73 |
| STARTING LEVERAGE | 3.2 |
| SAG POINT LEVERAGE | 2.95 |
| ENDING LEVERAGE | 2.45 |
| PROGRESSION % | 23.4 |
| LEVERAGE CURVE | PL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PL |
| OEM SHOCK | ROCKSHOX SUPER DELUXE |
| UPGRADE OPTION | |
| SUGGESTED SHOCK SPRING | 450,500,550,600,650,750, |
| HEAD TUBE ANGLE | 63.6 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | ROCKSHOX LYRIK DEBON AIR |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 40,45,50,55,60,60, |
| COMMENTS | Best estimate for leverage |
| COMMENTS | Same chain stay lengths |
