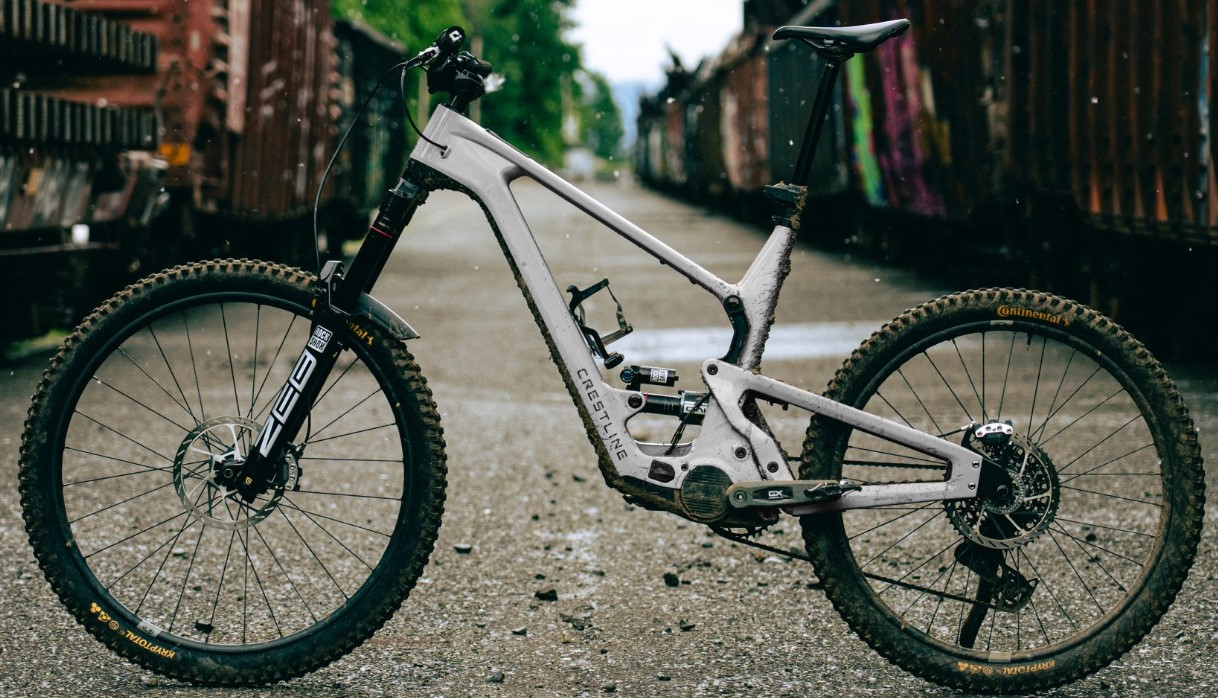

2025 CRESTLINE RS 181
| MODEL VERSION YEARS | 2025- |
|---|---|
| TIRE SIZE | 29 Front 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 52 |
| SHOCK SIZE | 205 x 65,T |
| TRAVEL MM | 181 |
| UPPER REDUCER | 30.0 x 8.0 |
| LOWER REDUCER | 30.0 x 8.0 |
| LINKAGE | FLOATING PIVOT UPPER/LOWER |
| AVERAGE LEVERAGE | 2.78 |
| STARTING LEVERAGE | 3.21 |
| SAG POINT LEVERAGE | 2.9 |
| ENDING LEVERAGE | 2.24 |
| PROGRESSION % | 30.2 |

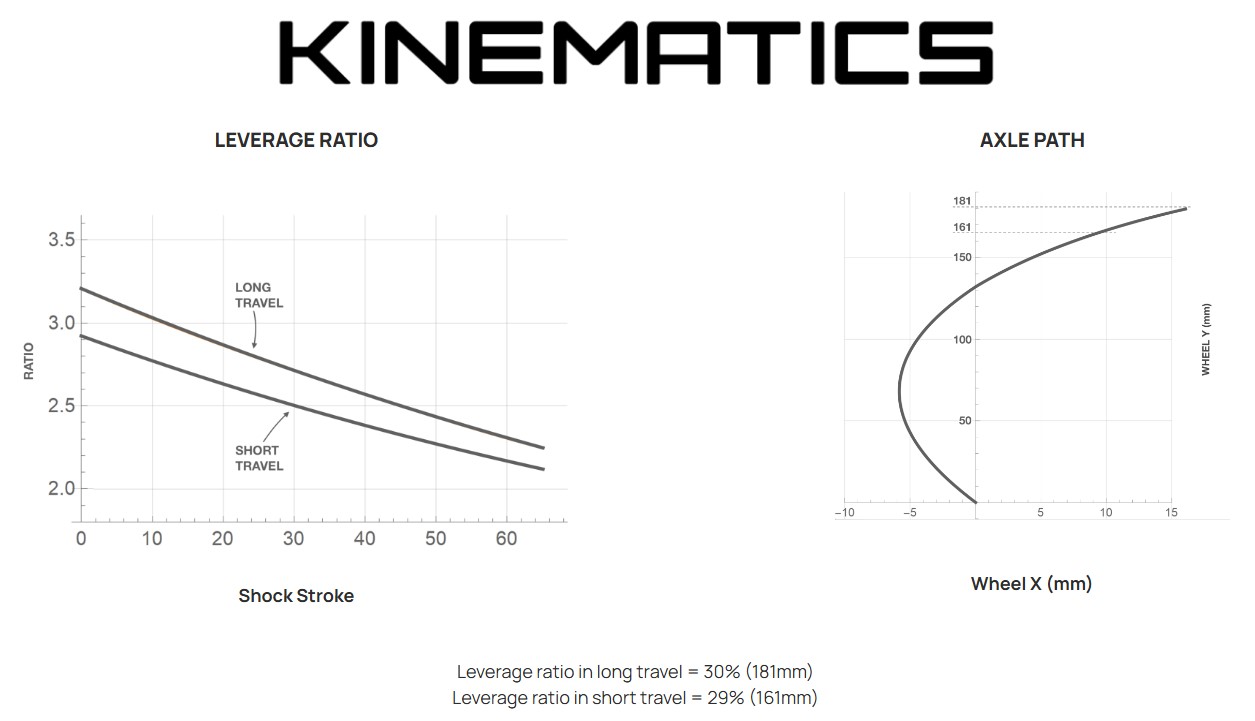

| LEVERAGE CURVE | HPL
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE HPL |
| OEM SHOCK | ROCKSHOX VIVID |
| UPGRADE OPTION | BOMBER CR |
| UPGRADE OPTION | FOX DHX |
| SUGGESTED SHOCK SPRING | 400,450,500,550,600,650, |
| HEAD TUBE ANGLE | 63.5 |
| RECOMMENDED FORK TRAVEL | 180 |
| OEM FORK | ROCKSHOX ZEB |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX ZEB HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | Fox 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | ROCKSHOX BOXXER HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,55, |
| COMMENTS | Cascade Components Kinematics 161 -181 travel flip chip, 60 -65 mm stroke combos |
| COMMENTS | S 180 Classic has more add on battery options and different motor |
