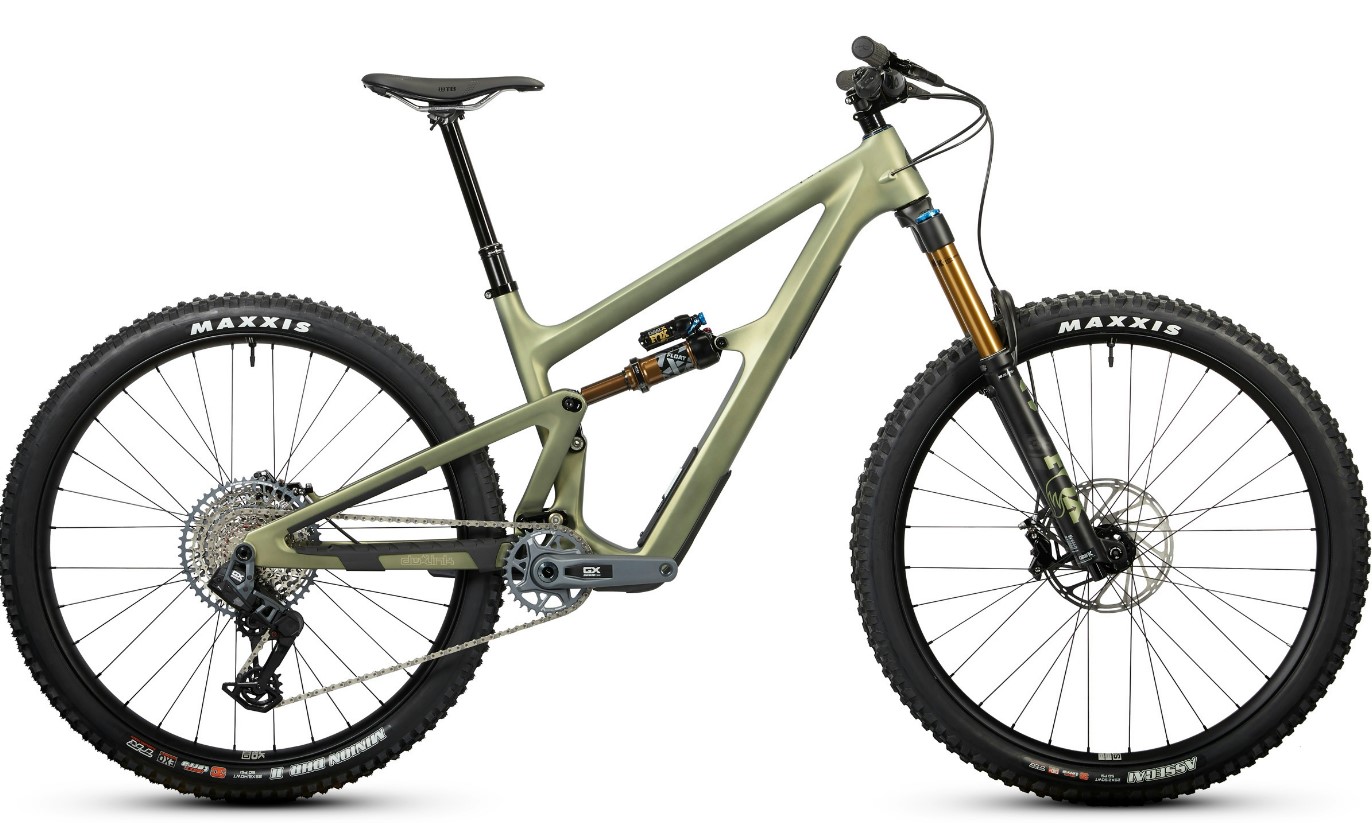

2025 IBIS Ripmo V3
| MODEL VERSION YEARS | 2025- |
|---|---|
| TIRE SIZE | 29 Front, 29 or 27.5 Rear |
| FRAME MATERIAL | CARBON |
| BIKE WEIGHT (lbs) | 28 |
| SHOCK SIZE | 230 x 60 |
| TRAVEL MM | 150 |
| UPPER REDUCER | 25.0 x 8.0 |
| LOWER REDUCER | 15.2 x 8.0 |
| LINKAGE | Yoke (Progressive) |
| AVERAGE LEVERAGE | 2.50 |
| STARTING LEVERAGE | 3.3 |
| SAG POINT LEVERAGE | 2.85 |
| ENDING LEVERAGE | 2.3 |
| PROGRESSION % | 30.3 |
| LEVERAGE CURVE | PBLE
|
| Installed Pictures | Installed Views |
| SHOCK TUNE | PROGRESSIVE PBLE |
| OEM SHOCK | FOX FLOAT X |
| UPGRADE OPTION | BOMBER CR |
| SUGGESTED SHOCK SPRING | 350,400,450,500,550,600, |
| HEAD TUBE ANGLE | 64.5 |
| RECOMMENDED FORK TRAVEL | 160 |
| OEM FORK | FOX 38 FLOAT |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 38 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | FOX 36 HYBRID |
| UPGRADE OPTION CARTRIDGE/SPRING | BOMBER Z1 HYBRID |
SUGGESTED FORK SPRING WITH OUR CARTRIDGE | 35,40,45,50,55,60, |
| COMMENTS | Flip chip for 27.5 rear, more progression than previous model, best estimate of progression ?, DW-Link |
| COMMENTS | small frame is tight to top tube? Optional chain stay lengths |
