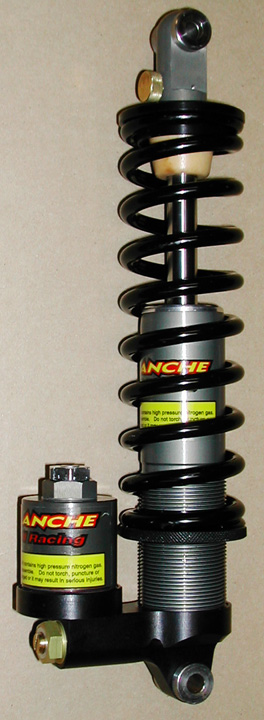

XR50 / CRF50 Honda Motorcycle Shock
* Piggyback reservoir with compact internal floating piston.
* Adjustable for rider weight range 125-250 lbs
Stroke
Eye to Eye
Fits
3.0
10.25
Stock Frame
3.0
10.38**
Stock Frame
3.0
10.50
Aftermarket
3.25
10.75
Aftermarket
3.5
11.00
Aftermarket

** best fit for stock frame

* Raises rear by 2.0 inches.
* Common bleed rebound adjustment, 16 clicks.
* High/low compression adjustment, 22 clicks
* Anti-squat compression blow-off valving
* 30 mm ID shock body and 12.5 mm OD shaft
* Weight - 2.2 lbs
* O-ring sealed DU bearings.
* Heavy duty shaft bumper.
* Anti-bottoming shape factor chamber cup prevents bottoming
* MX seal and valving technology
* Any MX Suspension Shop can fine tune or revalve

price $599 includes mounting hardware

Download an Owners Manual (288k)

Size

shipped ground USA, for expedited or International orders, additional charges can be added to cart below.

Expedited shipping

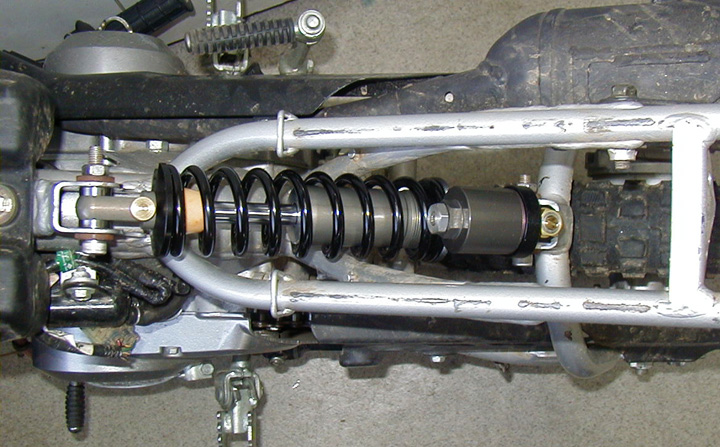

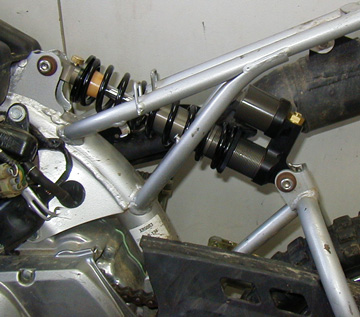

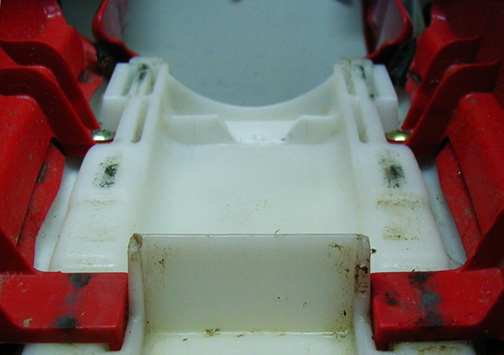

Installation requires new mounting adaptor washers and bolts, included. Electrical box underseat must be moved forward as shown below. A small notch on the underside of the seat plastic is required to clear the reservoir charging nut. Click on pictures for larger images.
