Rockshox Zeb
(Domain as a low cost option as well)

Technology

This will make your fork feel like a completely different fork,
Low speed damping that’s firm but still blows-off to be plush on small bumps,
Reduced fork dive that eases the fork through the travel without harshness,
No more high speed compression spikes and no more bottoming with the optional ABS system.
Low speed compression and rebound adjusters help fine tune the valving as to how it transitions from low to mid and when the high speed kicks in,
Much more effective than the other dampers attempt to add high speed adjustment without the proper shim stack.

All cartridges are optimized for current travel.
If you plan on changing the travel in the future, please let us know so the proper cartridge tube can be installed.

Zeb Cartridge

Specifications

• Replacement open bath maintenance free speed sensitive damper assembly, "set it and forget it"
• 20 mm ID damper tube with shimmed 4 port MX style compression and rebound valving pistons
• Upper fork cap adjuster screw with 22 clicks of activated low speed rebound
• Base valve adjuster screw with 22 clicks of activated low speed compression adjustment
Optional Hydraulic Anti-Bottoming System (ABS) for end of stroke bottoming resistance
• Speed sensitive multi-stage shimmed compression, midvalves and rebound valving
• Custom valved and set-up for each rider with printed set-up charts
• Fork spring and air pressure recommendations help us tune to to your weight riding style
Midvalve kit included with standard cartridge to prevent fork dive, adds low speed compression without
harshness, optional midvalve revalving shim kit and set-up charts available
• Designed to be self-installed or send it to us for installation if you need us to do the install

Includes New Interactive Set-Up Chart

Example


Optional FvAT/HSB
Floating Valving Assisted Threshold High Speed Blow-off System


click here to add it to your cartridge

For the firmer feel without harshness, have that big hit set-up that still feels plush on square edged bumps!

Also

Call us for recommended air spring upgrades that work best with your cartridge setup(stock air spring or hybrid coil/air) You may need keep the original air spring or might upgrade to the Luftkappe, C1 or DebonAir+.


Available for those who want to fiddle with their set-up:
Optional revalving kit for compression and rebound pistons, with revalving set-up charts

• Weight approx. 300 grams

Need us to install it for you, just send your fork to us and we will install it for $129 including Spectro 85/150 oil.



Available for all models of Zeb

Includes 20 mm Cartridge, Adaptor kit and MidValve Kit preinstalled

$549

Install similar to Lyrik, updated manual soon.

Download: 2016-20 Lyrik/Yari open bath installation manual (14.9 MB)
(same as pike manual)

Watch the Install Video(unedited sorry)

Custom valved and set-up to rider weight, ability and riding style



For details on Cartridge click here:

To order tools, revalving kits, and replacement adaptors click here:



Choose the type of riding that you will be doing so we can custom valve it to your specific needs.

Click here for a description of our definitions

Type of Riding

Choose your fork year that the cartridge will be installed in.

Fork Year



Choose your fork model that the cartridge will be installed in.

Fork Model



Choose your fork travel that the cartridge will be installed in.

Fork Travel



Choose your fork wheel size that the cartridge will be installed in.

Fork Wheel size

Choose rider weight.


Rider weight is without gear, we add 5-7 lbs for DH gear, 7-10 lbs for All-Mtn/Freeride.

Rider Weight

Choose the spring rate/air pressure you will be using which gives you 22% sag.
We need this number to help set-up your fork rebound damping correctly.

Click here for sag setting Tips

Our open bath cartridge works well with the softer spring recommendations of the Vorsprung Smashpot systems.

Air Pressure
or Spring Rate

Choose your rider ability for us to set-up the cartridge.

Rider Ability







Zeb 20 mm Cartridge kit

available for
150, 160 mm, 170 and 180 mm models

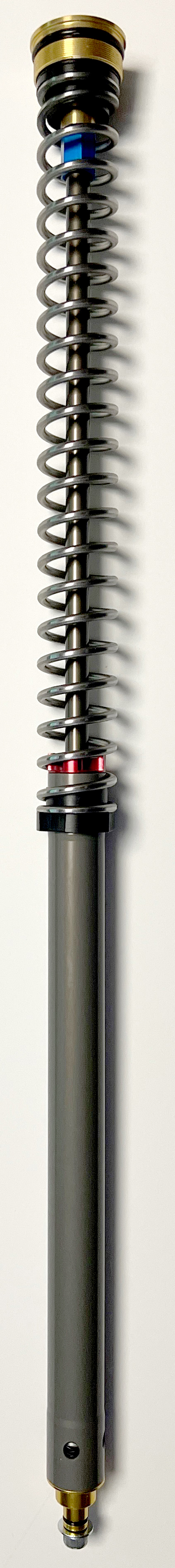

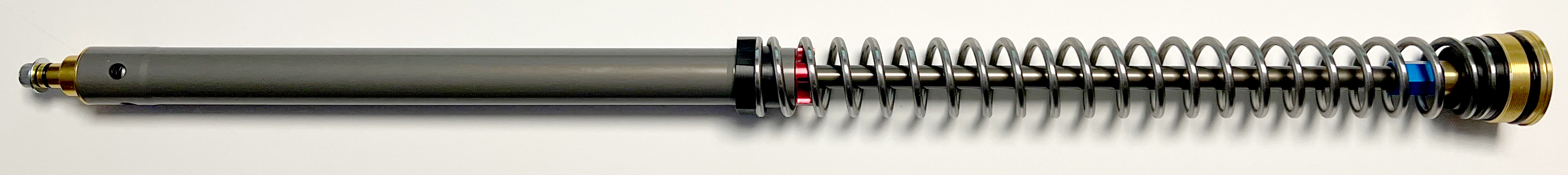

Hybrid Coil and Air System

Zeb 2020-2021 150/160/170/180 models



Click here: to add Hybrid coil option





ABS Option

Only needed for coil only versions of the Zeb
(Push ACS3 needed if not running any air pressure)
(Smashpot has HBO so not needed)
not needed for Air/Hybrid versions

Click here for more details

Add option here

Price $99.95

ABS Option

Price $99.95, during initial build.

Price $99.95, plus labor($99) to retro fit, send your cartridge to us for installation.

















Have us install your cartridge for you

Ship us your fork, we will install your new cartridge
includes Spectro 85/150 Oil

Add option here, does not include shipping back to you, we will adjust your shipping total depending on where you live in the world and send you a Paypal invoice for the difference. This is not a rebuild, it assumes your fork is in good working condition with no leaks or scratches on the stanchions.

Price $129



Installation

Price $129, plus shipping difference









:
