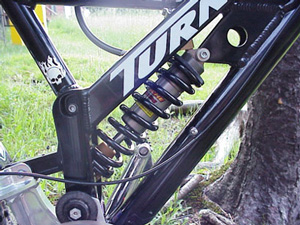

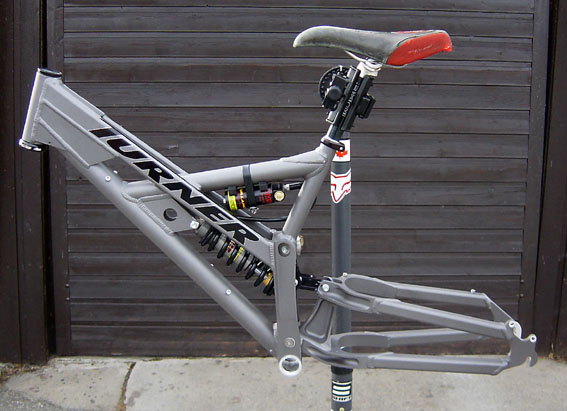

2000-2002 Turner DHR
SHOCK SPECIFICATIONS
EYE "2" EYE 8.5 inches
STROKE 2.5 inches
MODEL DHS2.5
PIGGYBACK OPTION MAYBE
HOSE 12 Inch
FITTING 90 deg @ 6:00
BUSHING (FRAME) 22.0 x 6.0
BUSHING (LINKAGE) 22.0 x 6.0
More Pictures submit
your
pictue here
INSTALLATION / SETUP
RIDER WEIGHT
130-165 LBS 450 LB/IN
165-195 LBS 550 LB/IN
195-230 LBS 600 LB Ti
230-260 LBS 650 LB Ti
PRELOAD 1.5 TURNS
NITROGEN 200 PSI

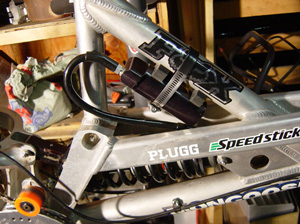

RESERVOIR PLACEMENT TOP TUBE
VALVING RISING RATE
MOUNTING CLAMP 2.5 INCH
RUBBER MOUNTS
1.5 X 1.5
PROBLEMS / CONCERNS
MAXIMUM WEIGHT LIMIT 260 LBS WITH Ti
INSTALLATION ISSUE NONE
TRAVEL CONSIDERATION NONE
CLEARANCE SPRING LENGTH STANDARD COLLAR
CLEARANCE SPRING DIAMETER OK
CLEARANCE FOR EYES OK
CLEARANCE FOR FITTINGS OK
LINKAGE RATE SOFT INITIALLY
FRAME MODIFICATIONS NONE
HOSE BEND RADIUS TIGHT
HOSE MOVEMENT NO ISSUE
