2004 Turner DHR
SHOCK SPECIFICATIONS
EYE "2" EYE 9.5 inches
STROKE 3.0 inches
MODEL DHS3.0
PIGGYBACK OPTION MAYBE
HOSE 7 Inch, SM, MED
9 Inch LG FRAME
FITTING 90 deg @ 7:00
OR 45 deg @ 10:00
BUSHING (FRAME) 22.0 x 6.0
BUSHING (LINKAGE) 22.0 x 6.0
More Pictures submit
your
pictue here
INSTALLATION / SETUP
RIDER WEIGHT
130-165 LBS 350 LB/IN
165-195 LBS 450 LB/IN
195-230 LBS 550 LB
230-260 LBS 600 LB Ti
PRELOAD 1.5 TURNS
NITROGEN 200 PSI

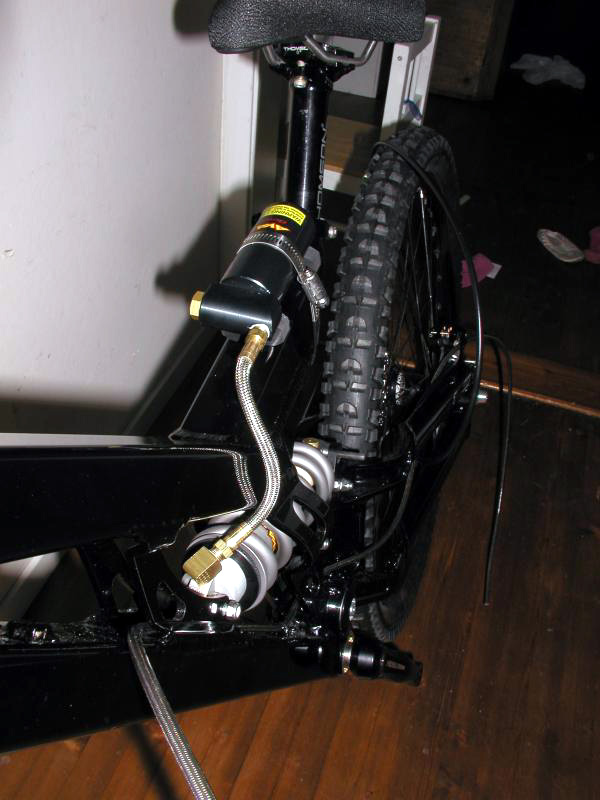

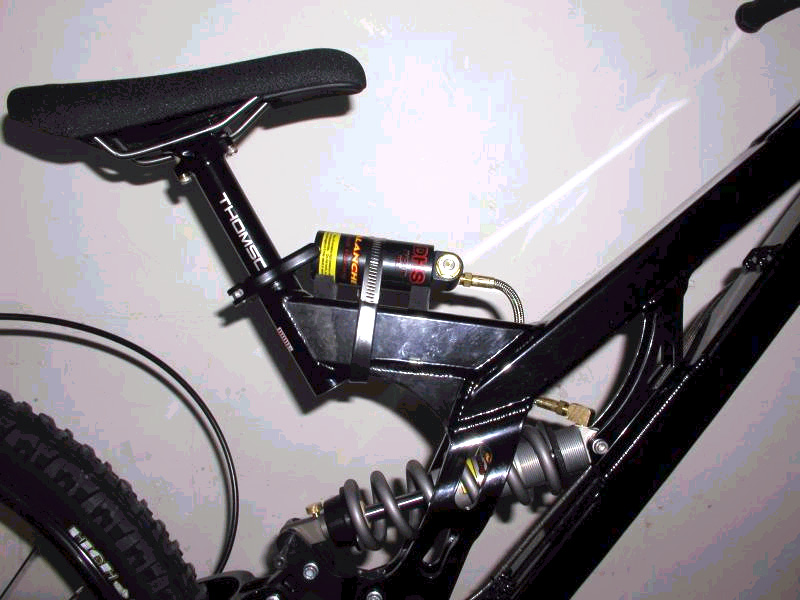

RESERVOIR PLACEMENT TOP TUBE OR TRIANGLE
VALVING RISING RATE
MOUNTING CLAMP 2.5 INCH
RUBBER MOUNTS
1.5 X 1.5
PROBLEMS / CONCERNS
MAXIMUM WEIGHT LIMIT 260 LBS WITH Ti
INSTALLATION ISSUE NONE
TRAVEL CONSIDERATION NONE
CLEARANCE SPRING LENGTH STANDARD COLLAR
CLEARANCE SPRING DIAMETER OK
CLEARANCE FOR EYES OK
CLEARANCE FOR FITTINGS OK
LINKAGE RATE SOFT INITIALLY
FRAME SIZE ISSUES LARGE NEEDS 9 INCH HOSE
FRAME MODIFICATIONS NONE
HOSE BEND RADIUS TIGHT
HOSE MOVEMENT NO ISSUE
